S9 35kv 3000kva oil immersed power transformer

FOB Reference Price:Get Latest Price
$1,232.00 - $16,500.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 500 >500
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
Daelim
Model Number:
S9/S10/S11
Usage:
Power
Phase:
Three
Coil Number:
2 winding
Coil Structure:
Toroidal
Product name:
S9 35kv 3000kva oil immersed power transformer
Rated capacity:
3000kva
Rated voltage:
35kv
Frequency:
50Hz/60Hz
Primary voltage:
35~38.5kv
Secondary voltage:
3.15~11kv
Vector group:
Yd11/YNd11
Standard:
IEC ANSI IEEE
Certification:
ISO9001
Cooling Method:
ONAN ONAF
Supply Ability
Supply Ability:
500 Set/Sets per Month S9 35kv 3000kva oil immersed power transformer
Packaging & Delivery
Packaging Details
wooden case
S9 35kv 3000kva oil immersed power transformer
Port
Tianjin/Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 500 >500
Est. Time(days) 30 To be negotiated
S11 Series

Introduction To Products

The performance of our S9, S10,S11 series 20KV and 35KV three-phase oil-immersed transformer conform to the standard of GB 1094-1996 ‘power transformer’. The iron core is made of quality cold-rolled silicon steel sheet, and the coil is made of quality oxygen-free copper, featuring good outlook and safe running. The products are widely used in power transmission and distribution of industrial and agricultural power networks.

Main Functions And Features

-High reliability, advances level of performances, reasonable economical indicators.

-The core joints are of stepped shape with 3 steps, and the surface of the core is coated with cured paint to lower losses and noise.

-The winding has novel structure and its oil passage is reasonable designed. Its newly designed insulation structure helps enhance its mechanical strength and the short circuit withstanding ability.

-The oil tank is in various types, all have good outlook.

Main Technical Parameters for 35KV level ,S9-,S10-,S11 series distribution transformer
Rated
Power
(kva)
High
Voltage
(kv)
H.V.Tap
range
Low
Voltage
(kv)
Connection
symbol
Short
Circuit
Impendence
(%)
No-load loss(W) On-load loss(W)No load
current
(%)
S9S10S11S9S10S11
80033  35

       ±5%

±2*2.5%

6.3

6.6

10

10.5

Yd11  6.5   125011109809900935093501.05
10001490132011601220011500115001
12501760157013801465013900139000.9
16002130190016601765016600166000.85
20002610232020301935018300183000.75
25003150280024502070019600196000.75
3150 7 3870344030102430023000230000.7
40004640412036102880027200272000.7
50005490488042703300031200312000.6
6300 7.5 6570584051103690034900349000.6
8000Ynd119000800070004050038300383000.55
1000010620944082604770045100451000.55
12500  8  1260011200108005670053600536000.5
160001530013600119006930065500655000.5
200001809016100141008370079100791000.5
250002151019120167309900093500935000.4
315002565022800200001188001122001122000.4

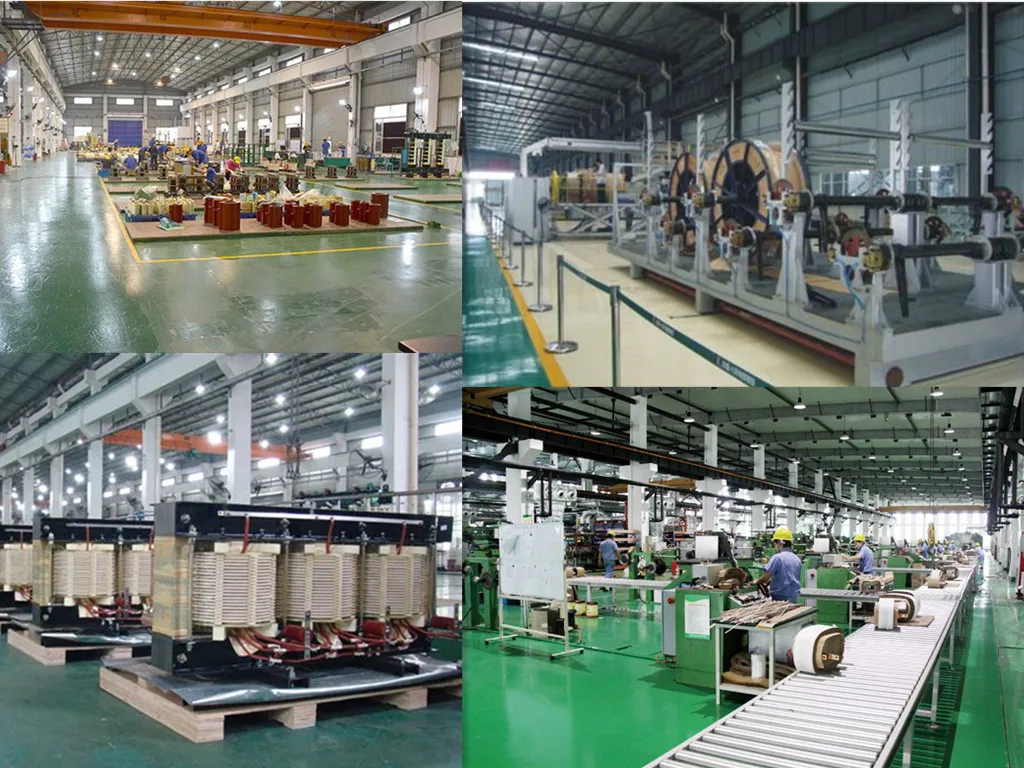

Production Workshop

 All production and manufacture procedures are under strict control, and all process, tests, ex-work tests are computer-operated.

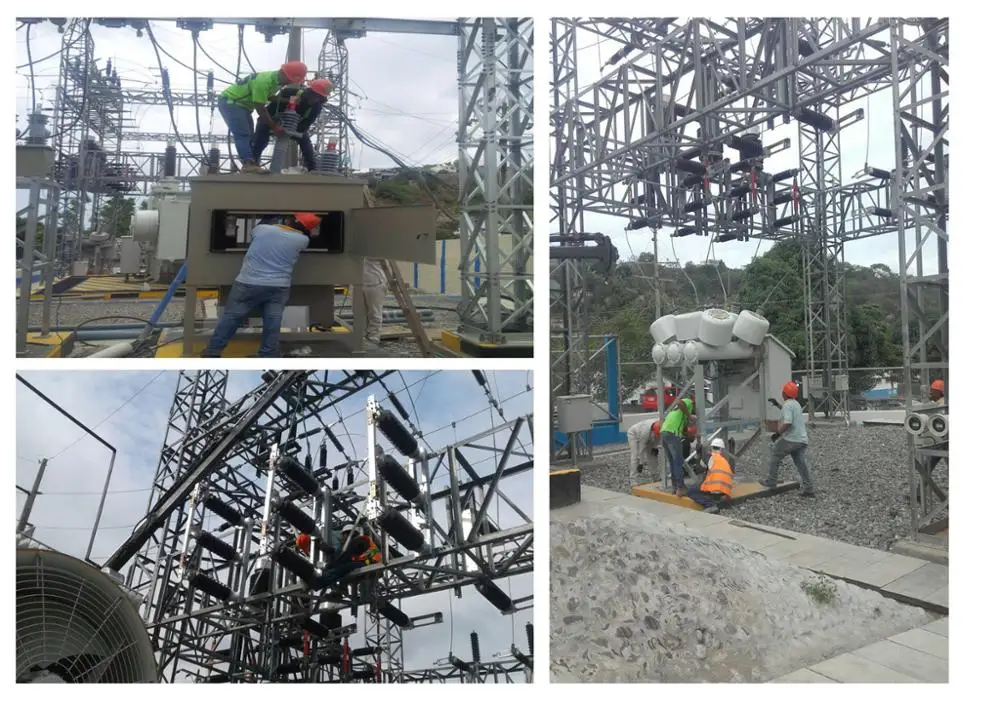

Projects&Exhibition

Our other projects

Our products are sold all over the world, and we have large project experience in the United States, Europe, South America, Middle East, Southeast Asia, Africa and so on.

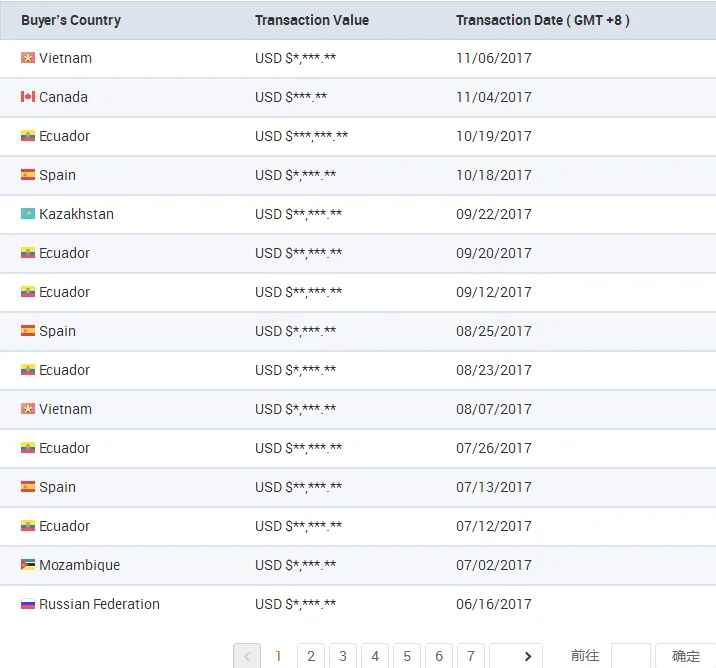

Our turnover in the past few months

Otchet prodaj.png





Certifications

P4THF9{7IG[BC92YGG8PCN

Packaging & Shipping



Our packing experts will work with you and your product’s specifications, and provide solutions for packaging options to ensure safe transport and delivery.

Packaging: Wooden case, container or according to client's requirements

ShippingLand transportation and Ocean transportation



The standard procedure for making wooden case is as follows:

♦ Receipt of information required for the type of goods to be wood barrel customers.

♦ Measure and create original designs for customers.

♦ Select the type of wood suitable for the requirements of the goods.

♦ Determine the delivery time.

♦ Check the wood barrel technique.

♦ Handover confirmation.

packing shipping_.jpg



Our products have been shipped all around the world, with an extensive logistic network, we provide the best transportation option for our clients.




Company Information

Beijing Daelim Green EP Tech Co., Ltd.

Located in China Central Place,a prosperous district in Beijing.Beijing Daelim Green EP Tech Co., Ltd. is mainly engaged in the import & export of electric products and equipment. Our business team has more than 15 years' foreign business experience, and also has a unique understanding of electrical products and overseas markets. We have established and extended business relationships with customers and partners in Southeast Asia, the Middle East, Europe, Africa, North America and South America.
The main products and equipment we are dealing with: power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.
We provide competitive prices, high quality products, timely shipment and efficient services to develop our cooperation with all of our customers. We are trading in accordance with international traditions and practices. We would like to extend business with our customers and partners on the basis of cooperation and mutual benefit.


Know more about DAELIM,the company website address is:

   http://www.daelim-electric.com/




Our Services

Quality and excellence in services

Train employees and explain how to use equipments clearly and efficiently.

♦ We offer the best solution and products to fulfill the buyers' requirements.

♦ We can arrange technicians to install the equipments and train your staff on site.
♦ Anytime, we provide considerate technical consultation.
♦ Prompt reply for your inquiry and feedback.
