Factory direct price 20 kv 315kva electric power transformer price

FOB Reference Price:Get Latest Price
US $2,000-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Model Number:
S11-M
Usage:
Power
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
two winding
Product name:
20 kv 315kva electric power transformer price
Rated capacity:
315kva
High voltage:
20kv
Low voltage:
0.4kv
Certification:
ISO9001
Standard:
IEC60076
Frequency:
50/60Hz
Material:
Copper
Cooling type:
ONAN
Connection type:
Yyn0 Dyn11
Supply Ability
Supply Ability:
300 Set/Sets per Month 20 kv 315kva electric power transformer price
Packaging & Delivery
Packaging Details
International Standard Wooden Case. One unit, one case for 20 kv 315kva electric power transformer price
Port
Tianjin, Shanghai, Guangzhou, etc.CHINA

Factory direct price 20 kv 315kva electric power transformer price

Product Description



20kv S11-M

Introduction To Products

The performance of our S9/S10/S11 series 20kV and 35kV three-phase oil-immersed transformer conform to the standard of GB1094-1996"Power Transformer" and GB/T6451-2008"Technical Parameters and Requirements of Three-phase Oil-immersed Power Transformer". The iron core is made of quality cold-rolled silicon steel sheet, and the coil is made of quality oxygen-free copper, featuring good outlook and safe running. The products are widely used in power transmission and distribution of industrial and agricultural power networks.

Main Functions And Features

High reliablity, advanced level of performances, reasonable economical indicators.

The core joints are of stepped shape with 3 steps, and the surface of the core is coated with cured paint to lower losses and noise.

The winding has novel structure and its oil passage is reasonable designed. Its newly designed insulation structure helps enhance its mechanical strength and the short circuit withstanding ability.

The oil tank is in various types, all have good outlook.

<

Main Technical Parameters for 20KV level ,S11-M series distribution transformer
Rated
Power
(kva)
High
Voltage
(kv)
H.V.Tap
range
Low
Voltage
(kv)
Connection
symbol
Short
Circuit
Impendence
(%)
No-load loss(W) On-load loss(W)No load
current
(%)
3020
22
±5%
±2x2.5%
0.4Yyn0
Dyn11
41006002.1
501308702
6315010401.9
8018012501.8
10020015001.6
12524018001.5
16029022001.4
20033026001.2
25040030501.2
31548036501.1
40057043001
50068051501
6304.581062000.9
80098075000.8
10001150103000.7
12501360120000.6
16001640145000.6
20001940171000.6
25002300202600.5



Production Workshop

 All production and manufacture procedures are under strict control, and all process, tests, ex-work tests are computer-operated.



Packaging & Shipping

The standard procedure for making wooden case is as follows:

♦ Receipt of information required for the type of goods to be wood barrel customers.

♦ Measure and create original designs for customers.

♦ Select the type of wood suitable for the requirements of the goods.

♦ Determine the delivery time.

♦ Check the wood barrel technique.

♦ Handover confirmation of work efficiency.



Our Services

♦ Train employees and explain how to use equipments clearly and efficiently.

♦ We offer the best solution and products to fulfill the buyers' requirements.

♦ We can arrange technicians to install the equipments and train your staff on site.
♦ Anytime, we provide considerate technical consultation.
♦ Prompt reply for your inquiry and feedback.



Our Customers

Our turnover in the past few months

 Our other projects

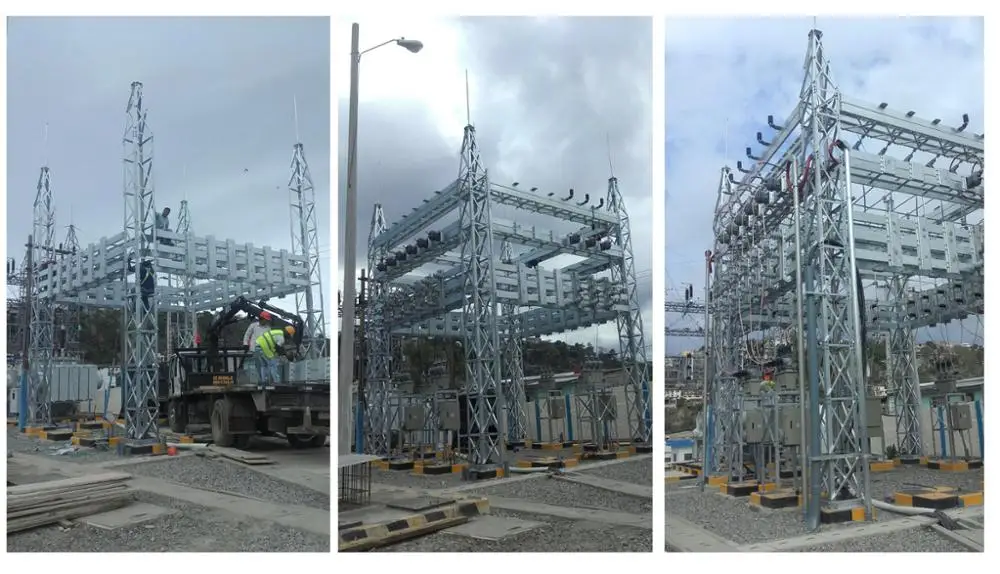

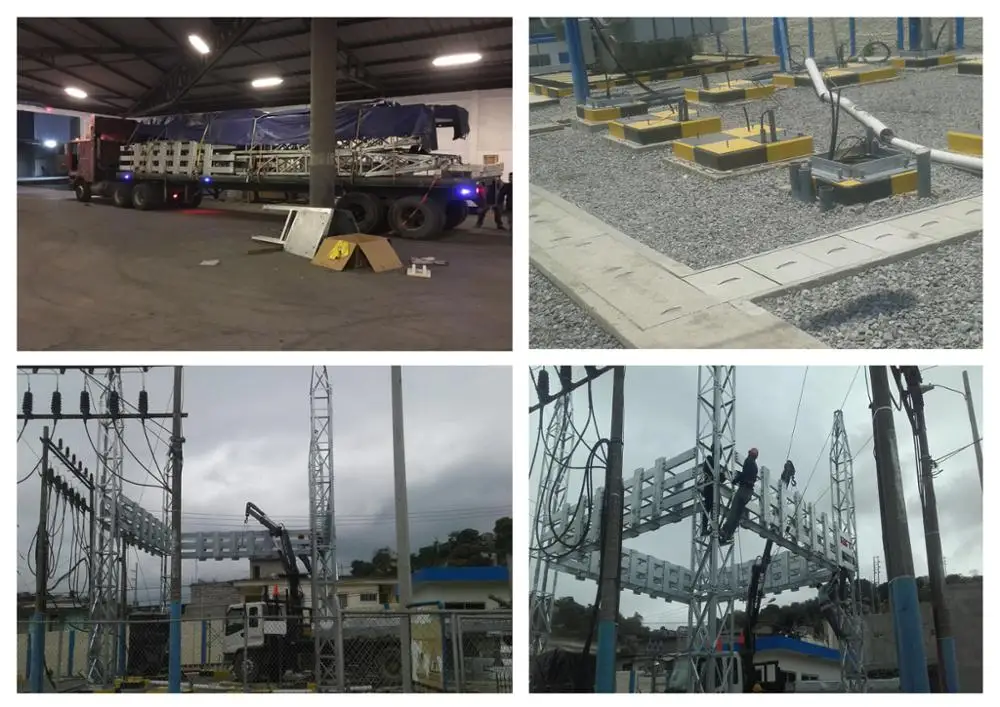

Installation of Substation and Power Transformer

All the parts or components dispatched separately should be properly cleaned from inside and outside before being fitted to the transformer body. Special attention, to be given if, interior surface of the any component is found rusty.
