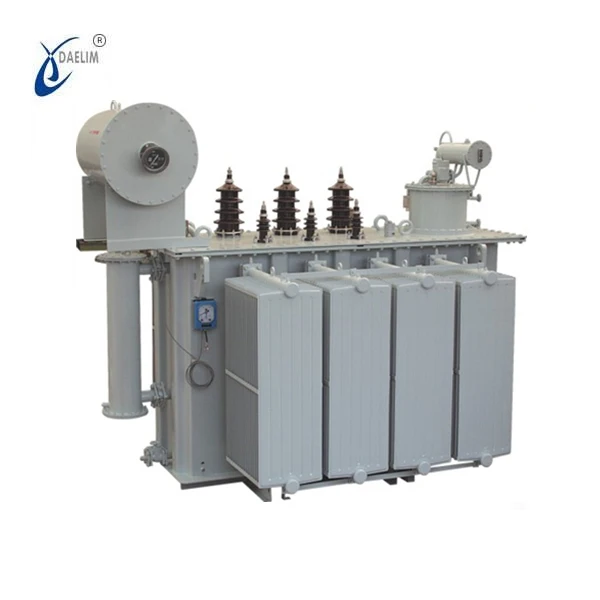

Factory direct supply 3 phase 35kv 2 mva oltc power transformer price

FOB Reference Price:Get Latest Price
US $10,000-20,000 / Sets | 1 Set/Sets 3 phase 35kv 2 mva oltc power transformer price (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Model Number:
SF9/SF10/SF11
Usage:
Power
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
two winding
Product name:
3 phase 35kv 2 mva oltc power transformer
Rated capacity:
2 mva
Rated voltage:
35kv
Output Voltage:
6.3 /6.6 /10 /10.5 /11kv
Frequency:
50/60Hz
Material:
Copper
Certification:
ISO9001
Standard:
IEC60076
Cooling type:
ONAN/ONAF
Connection type:
YNd11
SupplyAbility
SupplyAbility:
300 Set/Sets per Month 3 phase 35kv 2 mva oltc power transformer price
Packaging & Delivery
Packaging Details
International Standard Wooden Case. One unit, one case for 3 phase 35kv 2 mva oltc power transformer price
Port
Tianjin, Shanghai , Guangzhou, etc.China
Lead Time :
50 days after confirming the drawing

Factory direct supply 3 phase 35kv 2 mva oltc power transformer price



35KV SZ11- OLTC

Introduction To Products

The performances of our SZ-M series, SZ series 10KV and 35KV load-ratio voltage transformer conform to the standard of IEC. The iron core is made of quality cold-rolled silicon steel sheet, and in full-miter nonpuncture structure. The products are widely used in power transmission and distribution of industrial and agricultural power networks.



Main Functions And Features

Load-ratio voltage regulation, high reliability, advanced level of performances, reasonable economical indicators.

The core joints are of stepped shape with 3 steps, and the surface of the core is coated with cured paint to lower losees and noise.

The winding has novel structure and its oil passage is reasonable designed. Its newly designed insulation structure helps enhance its mechancial stength and the short circuit withstanding ability.

The oil tank is in two types-fully enclosed type and the type fitted with an oil conservator.

<

Main Technical Parameters for 35KV level SZ9-,SZ10-,SZ11- Series three-phase oil-immersed on-load-tap-changing power transformer
Rated
Power
(kva)
High
Voltage
(kv)
H.V.Tap
range
Low
Voltage
(kv)
Connection
symbol
Short
Circuit
Impendence
(%)
No-load loss(W) On-load loss(W)No load
current
(%)
S9S10S11S9S10S11
80035
38.5
±3x2.5%6.3
6.6
10
10.5
11
Yd11
YNd11
6.513201190106010500998099801.05
10001570141012601280012160121601
12501860167014901540014630146300.9
16002250203018001850017580175800.85
20002880259023002025019240192400.8
25003400306027202173020640206400.8
315074040364032302601024710247100.72
40004840436038703069029160291600.72
50005800522046403600034200342000.68
63007.57040634056303870036770367700.68
80009840886078704275040610406100.6
10000116001044092805058048050480500.6
1250081368012310109405985056860568600.56
160001646014810131707402070320703200.54
200001946017510155708714082780827800.54
250002370021330189601070001016501016500.5
315002750024750220001260001197001197000.45



Production Workshop

 All production and manufacture procedures are under strict control, and all process, tests, ex-work tests are computer-operated.



Packaging & Shipping

The standard procedure for making wooden case is as follows:

♦ Receipt of information required for the type of goods to be wood barrel customers.

♦ Measure and create original designs for customers.

♦ Select the type of wood suitable for the requirements of the goods.

♦ Determine the delivery time.

♦ Check the wood barrel technique.

♦ Handover confirmation of work efficiency.



Our Services



Train employees and explain how to use equipments clearly and efficiently.

♦ We offer the best solution and products to fulfill the buyers' requirements.

♦ We can arrange technicians to install the equipments and train your staff on site.
♦ Anytime, we provide considerate technical consultation.
♦ Prompt reply for your inquiry and feedback.



Customers & Projects

Our turnover in the past few months

Our other projects

Our products are sold all over the world, and we have large project experience in the United States, Europe, South America, Middle East, Southeast Asia, Africa and so on.



Certifications



Company Information

Beijing Daelim Green EP Tech Co., Ltd.



Beijing Daelim Green EP Tech Co., Ltd. is mainly engaged in the import & export of electric products and equipment. Our business team has more than 15 years' foreign business experience. We have established and extended business relationships with customers and partners in Southeast Asia, the Middle East, Europe, Africa, North America and South America.



In the four years of performance in ALIBABA, we have gained lots of honor, like "The Most Reliable Supplier" "Assessed Supplier" "One Million Hero", "Super Legion" and etc.



The main products and equipment we are dealing with: power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.
