11kv 1000kva cubicle type substation transformer

FOB Reference Price:Get Latest Price
US $5,000-13,000 / Sets | 1 Set/Sets 11kv 1000kva cubicle type substation transformer (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Model Number:
ZGS
Usage:
Power
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
two winding
Product name:
11kv 1000kva cubicle type substation transformer
Rated capacity:
1000kva
Rated voltage:
11kv
Output Voltage:
0.22/0.38/0.4kv
Frequency:
50/60Hz
Material:
Aluminum
Certification:
ISO9001
Standard:
IEC60076
Type:
oil
Connection type:
Yyn0 Dyn11
SupplyAbility
SupplyAbility:
Set/Sets per Month 11kv 1000kva cubicle type substation transformer
Packaging & Delivery
Packaging Details
International Standard Wooden Case. One unit, one case for 11kv 1000kva cubicle type substation transformer
Port
Tianjin, Guangzhou,Shanghai, etc. CHINA
Lead Time :
30 days after confirming the drawing

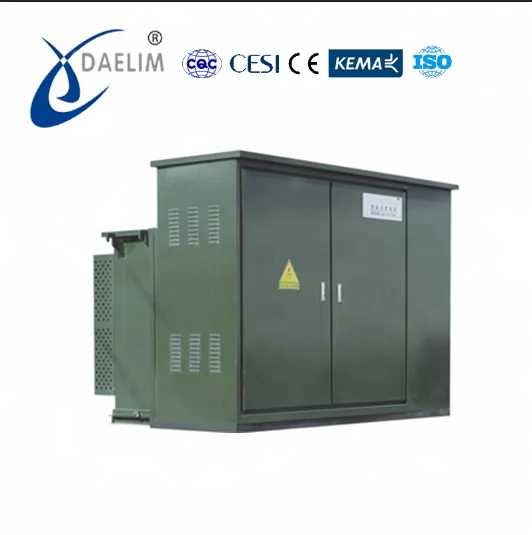

11kv 1000kva cubicle type substation transformer

Pad Mounted

Main Functions And Features

Small volume, compact structure, reliable power supply and easy for installation; it can realize single  power supply, double power supply, or ring net supply, with double-fuse protection, low running cost.

The transformer adopts environment-friendly S11 series spiral core, non-excited voltage regulation, full-enclosed type, featuring energy saving and low noise.HV load switches and protective fuse are placed in oil filled iron tank, and the tank is of full-enclosed structure. The LV room is provided with watt-hour meters, voltmeters, and breakers of four outgoing lines, reactive power compensation can also be provided if necessary.

It  uses S11 series siparl core transformer, its idle loss is 30%~40% lower than S9, and noise 7~10dB lower than S9.

Rated capacityVoltage CombinedVector-groupNo-load-lossLoad lossNo-load current Impedance voltage
HVTrapping Ranges LV
1006
 6.3
 10
 10.5
 11
±5%
±2 X 2.5%
0.4Yyn0
Dyn11
20015000.654
12524018000.65
16028022000.6
20034026000.5
25040030500.5
31548036500.45
40057043000.45
500680515000.4
63081062000.44.5
80098075000.35
10001150103000.35
12501360120000.3
16001640145000.3



Production Workshop

 All production and manufacture procedures are under strict control, and all process, tests, ex-work tests are computer-operated.



Packaging & Shipping

The standard procedure for making wooden case is as follows:

♦ Receipt of information required for the type of goods to be wood barrel customers.

♦ Measure and create original designs for customers.

♦ Select the type of wood suitable for the requirements of the goods.

♦ Determine the delivery time.

♦ Check the wood barrel technique.

♦ Handover confirmation of work efficiency.



Our Services



Train employees and explain how to use equipments clearly and efficiently.

♦ We offer the best solution and products to fulfill the buyers' requirements.

♦ We can arrange technicians to install the equipments and train your staff on site.
♦ Anytime, we provide considerate technical consultation.
♦ Prompt reply for your inquiry and feedback.



Customers & Projects

Our turnover in the past few months

Our other projects

Our products are sold all over the world, and we have large project experience in the United States, Europe, South America, Middle East, Southeast Asia, Africa and so on.



Certifications



Company Information

Beijing Daelim Green EP Tech Co., Ltd.



Beijing Daelim Green EP Tech Co., Ltd. is mainly engaged in the import & export of electric products and equipment. Our business team has more than 15 years' foreign business experience. We have established and extended business relationships with customers and partners in Southeast Asia, the Middle East, Europe, Africa, North America and South America.



In the four years of performance in ALIBABA, we have gained lots of honor, like "The Most Reliable Supplier" "Assessed Supplier" "One Million Hero", "Super Legion" and etc.



The main products and equipment we are dealing with: power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.
