Price for 35 mva transformer step up 11 kv 132 kv

FOB Reference Price:Get Latest Price
US $40,000-50,000 / Set | 1 Set/Sets Price for 35 mva transformer step up 11 kv 132 kv (Min. Order)
Supply Ability:
200 Set/Sets per Year Price for 35 mva transformer step up 11 kv 132 kv
Port:
Tianjin/Shanghai/Guangzhou etc
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Model Number:
S(F)S9,S(F)S10,S(F)S11
Usage:
Power
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
3 windings
Product name:
Price for 35 mva transformer step up 11 kv 132 kv
Certification:
ISO
Standard:
IEC60076/ANSI
Frequency:
50/60Hz
Material:
Copper
Rated capacity:
35mva
Rated voltage:
132kv
Output Voltage:
11kv
Connection Symbol:
YNyn0d11
Tap Changer:
NLTC
Packaging & Delivery
Packaging Details
International Packing Method according to client's requirement.
Delivery Time
40-60 days after confirm the drawing

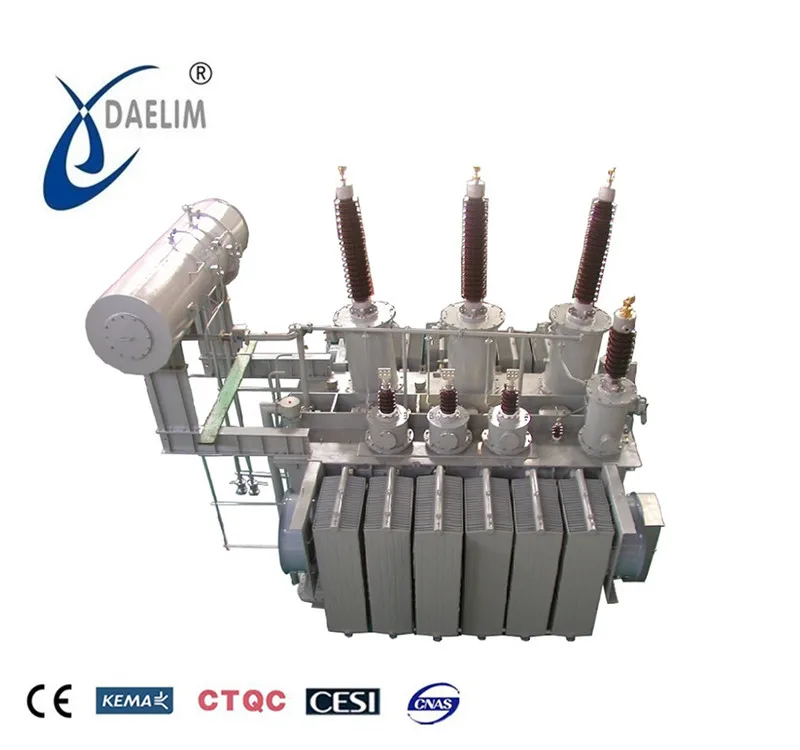

Price for 35 mva transformer step up 11 kv 132 kv

Product Description



Dealim brand 220kv,110kv and 66kv low-loss series transformer is our independently developed new generation of transformers on the basis of absorption of China and foreign advanced technology, which features low local discharge,low loss, high reliability, strong protection against abrupt short circuit.



Main Functions and Features



  • Amount of local discharge: The apparent discharge amount under 1.5 times of rated voltage is less than 80pC;
  • Noise:Product of 63MVA and below is lower than 58dB(AN);
  • Power loss: No-load loss is 30% lower than that of IEC standard;
  • Reliability: All in service products have no damages or oil leakage occurred;
  • Short circuit withstanding: Model SFZ11-50000/132 smoothly passed the short circuit withstanding test of the national transformer quality supervision and inspection center and also passed Holland "KEMA” quality control system.



Technical Data Sheet



Main Technical Parameters for 110KV level S(F)S9,S(F)S10,S(F)S11 Series three-phase NLTC power transformer
Rated
Power
(kva)
High
Voltage
(kv)
H.V.Tap
range
Middle Voltage(kv)Low
Voltage
(kv)
Connection
symbol
Short
Circuit
Impendence
(%)
No-load loss(KW) On-load loss(KW)
S9S10S11S9S10S11
6300110
121
(132)
±2x2.5%35         37            38.56.3
6.6
10.5
11
YNyn0d1110.511.410.2947.745.145.1
800013.712.310.856.753.653.6
1000016.214.512.866.662.962.9
1250019171578.37474
1600022.920.520.595.490.190.1
2000027.124.321.4112.5106.3106.3
2500032.128.725.3133.2125.8125.8
31500383430157.5148.8148.8
4000045.440.735.9189178.5178.5
5000042.448.142.4225212.5212.5
6300063.75750.3270255255



Application

Products Applications Show:









Packaging & Shipping

International Packing Method according to client's requirement.
