11kv 1250 kva cast resin dry type onan distribution transformer

FOB Reference Price:Get Latest Price
US $13,600-16,000 / Set | 1 Set/Sets 11kv 1250 kva cast resin dry type onan distribution transformer (Min. Order)
Supply Ability:
400 Set/Sets per Month 11kv 1250 kva cast resin dry type onan distribution transformer
Port:
Tianjin, Shanghai, Guangzhou, etc. CHINA
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Model Number:
SC(B)
Usage:
Power
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
two winding
Product name:
11kv 1250 kva cast resin dry type onan distribution transformer
Rated capacity:
1250kva
Rated voltage:
11kv
Output Voltage:
0.22/0.38/0.4kv
Frequency:
50/60Hz
Material:
Copper
Certification:
ISO9001
Standard:
IEC60076
Cooling type:
ONAN
Connection type:
Dyn11 Yyn0
Packaging & Delivery
Packaging Details
BY CLIENT REQUEST
11kv 1250 kva cast resin dry type onan distribution transformer
Delivery Time
30 DAYS AFTER THE ADVANCE PAYMENT

11kv 1250 kva onan cast resin dry type distribution transformer

Product Description

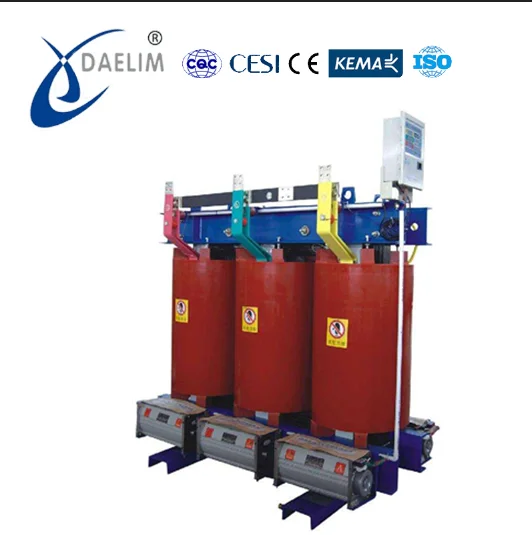

SC(B) DRY-TYPE

Application of Products:

Our SC(B) series epoxy resin cast dry transformer is cat under vacuum with insulating bands automatically. The core is made of high-permeable grain-orientated silicon sheet and cast with imported epoxy resin. Thanks to advanced technology, quality raw materials, scientific management, and perfect inspection means.

Main features:

1.The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble and has low local discharge, high reliability, and long service life.

2.Flame retardancy, explosion-proof and no environmental contamination. The insulating materials in the coil such as glass fiber are self-extinguishing and they will not cause fire by the arc resulted from short-circuit. The resin will not generate toxic or harmful gas under high temperature.

3.Gas duct is embedded inside it to enhance the radiation power and over-load capacity.

Main Technical Parameters for 10KV SC(B)-30-2500TYPE
Rated
Power
(kva)
High
Voltage
(kv)
H.V.Tap
range
Low
Voltage
(kv)
Connection
symbol
Short
Circuit
Impendence
(%)
No-load loss(KW) On-load loss(KW)
SC(B)9SC(B)10SC(B)9SC(B)10
30

6
6.3
10
10.5
11

15

±5%
±2x2.5%
0.4Dyn11
Yyn0
4220190750710
5031027010601000
8042037014601380
10045040016701570
12553047019601850
16061054022502130
20070062026802530
25081072029202760
31599088036703470
400110098042203990
5001310116051704880
6301510134062205880
63061460130063105960
8001710152073606960
10001990177086108130
125023502090102609690
1600276024501240011730
2000340030501530014450
2500400036001818017170
CERTIFICATIONS



MANUFACTURE

The company has invited experts and engineering technicians from large and medium-sized transformer factories as its managerial and technical personnel. All production and manufacture procedures are under strict control, and all process, tests, ex-work tests are computer-operated.



Packaging & Shipping

The standard procedure for making wooden case is as follows:

♦ Receipt of information required for the type of goods to be wood barrel customers.

♦ Measure and create original designs for customers.

♦ Select the type of wood suitable for the requirements of the goods.

♦ Determine the delivery time.

♦ Check the wood barrel technique.

♦ Handover confirmation of work efficiency.



Our Services



Company Information

Beijing Daelim Green EP Tech Co., Ltd.



Beijing Daelim Green EP Tech Co., Ltd. is mainly engaged in the import & export of electric products and equipment. Our business team has more than 15 years' foreign business experience, and also has a unique understanding of electrical products and overseas markets. We have established and extended business relationships with customers and partners in Southeast Asia, the Middle East, Europe, Africa, North America and South America.



The main products and equipment we are dealing with: power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.


We provide competitive prices, high quality products, timely shipment and efficient services to develop our cooperation with all of our customers. We are trading in accordance with international traditions and practices. We would like to extend business with our customers and partners on the basis of cooperation and mutual benefit..



CONTACT INFORMATION

Please offer the following information before inquiring or ordering to begin our cooperation
(1) Rated capacity,  (2) Voltage, (3) Range of tapping, (4) Vector group, (5) Short circuit impedance, (6) No.load loss, (7) On.load loss, (8) No.load current, (9) Rated frequency, (10) Cooling method, (11) Altitude,  (12) Working environment and other special requirements.
