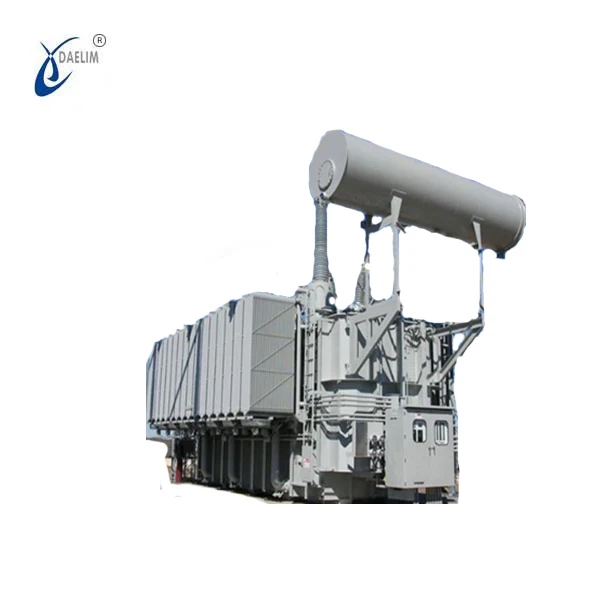

110kv 15mva three winding oil immersed step down power transformer

FOB Reference Price:Get Latest Price
US $100,000-180,000 / Sets | 1 Set/Sets 110kv 15mva three winding oil immersed step down power transform (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Model Number:
SF9/SF10/SF11
Usage:
Power
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
two winding
Product name:
110kv 15mva three winding oil immersed step down power transformer
Rated capacity:
15mva
Rated voltage:
110kv
Output Voltage:
6.3/6.6/10.5/11/20/34.5kv
Material:
Copper
Frequency:
50/60Hz
Certification:
ISO9001
Standard:
IEC60076
Cooling type:
ONAN/ONAF
Tap changer:
OLTC
SupplyAbility
SupplyAbility:
200 Set/Sets per Month 110kv 15mva three winding oil immersed step down power transform
Packaging & Delivery
Packaging Details
International Standard Wooden Case. One unit, one case for 110kv 15mva three winding oil immersed step down power transformer
Port
Tianjin, Guangzhou, Shanghai,etc. CHINA
Lead Time :
60 days after confirming the drawing

110kv 15mva three winding oil immersed step down power transformer

110KV SF(Z)-OLTC

Main Functions And Features

Amount of local discharge: The apparent discharge amount under 1.5 times of rated voltage is less than 80pC.

Noise: Product of 63MVA and below is lower than 58dB(AN).

Power loss: no-load loss is. 30% lower than that of IEC standard.

Reliablity: All in-service products have no damages or oil leakage occurred.

Short circuit withstanding: Model SFZ11-50000/132 smoothly passed the short-circuit withstanding test of the national transformer quality supervision and inspection center and also passed Holland "KEMA" quality Control syestem

<



Main Technical Parameters for 110KV level S(F)Z9,S(F)Z10,S(F)Z11 Series three-phase on-load oil-immeresd power transformer
Rated
Power
(kva)
High
Voltage
(kv)
H.V.Tap
range
Low
Voltage
(kv)
Connection
symbol
Short
Circuit
Impendence
(%)
No-load loss(KW) On-load loss(KW)
S9S10S11S9S10S11
6300110
121
(132)
±8x1.25%
(±9x1.67%)
6.3
6.6
10.5
11
(20)(34.5)
YNd1110.510.49.38.23734.934.9
800012.411.19.84542.542.5
1000014.913.411.85351.251.2
1250017.315.513.76359.559.5
1600020.918.716.57773.173.1
2000024.722.119.59388.488.4
2500028.825.822.7110105105
3150034.831.127.4133126126
4000041.737.332.9156148148
5000049.444.138.9194184184
6300058.752.546.4234221221



Production Workshop

 All production and manufacture procedures are under strict control, and all process, tests, ex-work tests are computer-operated.



Packaging & Shipping

The standard procedure for making wooden case is as follows:

♦ Receipt of information required for the type of goods to be wood barrel customers.

♦ Measure and create original designs for customers.

♦ Select the type of wood suitable for the requirements of the goods.

♦ Determine the delivery time.

♦ Check the wood barrel technique.

♦ Handover confirmation of work efficiency.



Our Services



Train employees and explain how to use equipments clearly and efficiently.

♦ We offer the best solution and products to fulfill the buyers' requirements.

♦ We can arrange technicians to install the equipments and train your staff on site.
♦ Anytime, we provide considerate technical consultation.
♦ Prompt reply for your inquiry and feedback.



Customers & Projects

Our turnover in the past few months

Our other projects

Our products are sold all over the world, and we have large project experience in the United States, Europe, South America, Middle East, Southeast Asia, Africa and so on.
