63KV 66KV 69KV 110KV 121KV 132KV 10 mw substation

FOB Reference Price:Get Latest Price
US $100,000-200,000 / Set | 1 Set/Sets 63KV 66KV 69KV 110KV 121KV 132KV 10 mw substation (Min. Order)
Supply Ability:
100 Set/Sets per Year 63KV 66KV 69KV 110KV 121KV 132KV 10 mw substation
Port:
Tianjin Port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Model Number:
S(F)Z9,S(F)Z10,S(F)Z11
Usage:
Power
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
2 windings
Product name:
63KV 66KV 69KV 110KV 121KV 132KV 10 mw substation
Certification:
ISO
Standard:
IEC60076
Frequency:
50/60Hz
Material:
Copper
Rated capacity:
10000mva
Rated voltage:
63/69/110/121/132kv
Output Voltage:
10.5kv
Connection Symbol:
YNd11
Tap Changer:
OLTC
Packaging & Delivery
Packaging Details
International Packing Method according to client's requirement.
Delivery Time
40-50 days after confirm the drawing

63KV 66KV 69KV 110KV 121KV 132KV 10 mw substation

Product Description



Dealim brand 220kv,110kv and 66kv low-loss series transformer is our independently developed new generation of transformers on the basis of absorption of China and foreign advanced technology, which features low local discharge,low loss, high reliability, strong protection against abrupt short circuit.



Main Functions and Features



  • Amount of local discharge: The apparent discharge amount under 1.5 times of rated voltage is less than 80pC;
  • Noise:Product of 63MVA and below is lower than 58dB(AN);
  • Power loss: No-load loss is 30% lower than that of IEC standard;
  • Reliability: All in service products have no damages or oil leakage occurred;
  • Short circuit withstanding: Model SFZ11-50000/132 smoothly passed the short circuit withstanding test of the national transformer quality supervision and inspection center and also passed Holland "KEMA” quality control system.



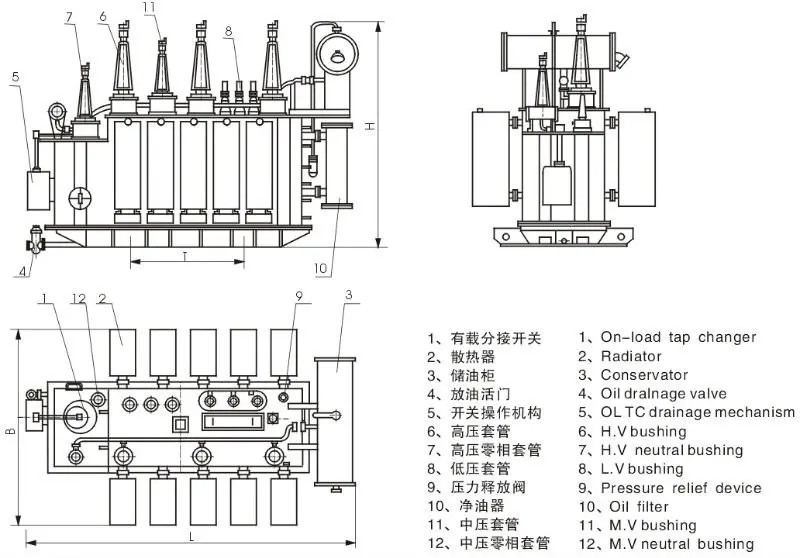

Technical Data Sheet



Main Technical Parameters for 66KV level S(F)Z9,S(F)Z10,S(F)Z11 Series three-phase on-load oil-immeresd power transformer
Rated
Power
(kva)
High
Voltage
(kv)
H.V.Tap
range
Low
Voltage
(kv)
Connection
symbol
Short
Circuit
Impendence
(%)
No-load loss(KW) On-load loss(KW)No load
current
(%)
S9S10S11S9S10S11
630063
66
69
±8x1.25%6.3
6.6
10.5
11
YNd11910.59.48.253634340.63
800012.511.29.8342.840.440.40.63
1000014.713.111.650.447.647.60.75
1250017.215.413.659.956.556.50.53
1600020.618.516.373.5369.569.50.49
2000024.321.819.289.184.284.20.49
2500028.625.622.6105.399.599.50.42
3150033.930.426.8126.91201200.42
4000040.436.231.9148.5140.3140.30.39
5000047.842.638.6184.5174.3174.30.39
6300056.350.444.4222.32102100.39



Application

Products Applications Show:
