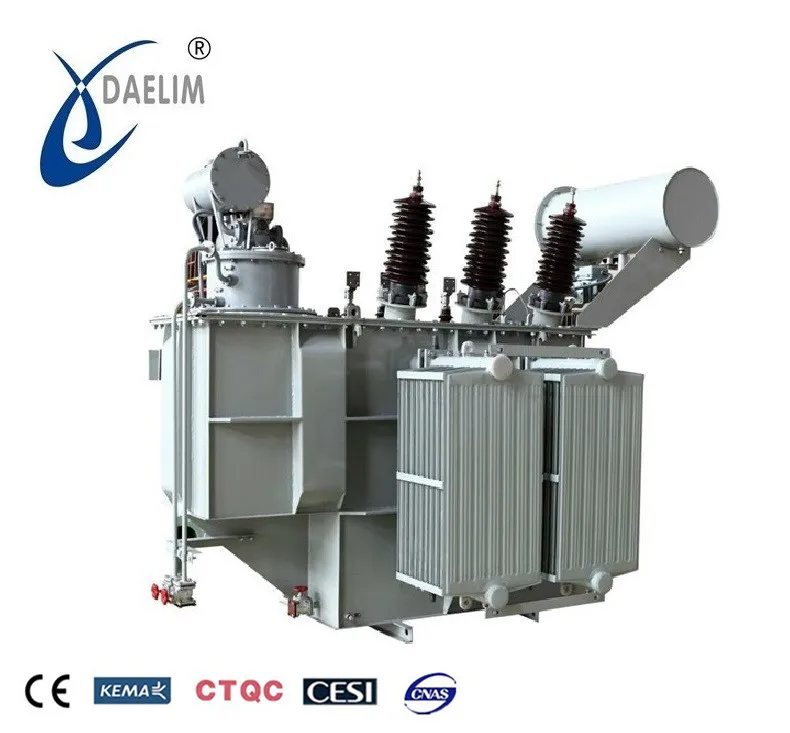

High quality oil immersed three phase 10 mw substation

FOB Reference Price:Get Latest Price
US $20,000-30,000 / Set | 1 Set/Sets High quality oil immersed three phase 10 mw substation (Min. Order)
Supply Ability:
200 Set/Sets per Month High quality oil immersed three phase 10 mw substation
Port:
Tianjin Port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Model Number:
S(F)Z9,S(F)Z10,S(F)Z11
Usage:
Power
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
2 windings
Product name:
High quality oil immersed three phase 10 mw substation
Certification:
ISO
Standard:
IEC60076
Frequency:
50/60Hz
Material:
Copper
Rated capacity:
10mva
Rated voltage:
66kv
Output Voltage:
11kv
Tap Changer:
OLTC
Connection Symbol:
YNd11
Packaging & Delivery
Packaging Details
International Packing Method according to client's requirement.
High quality oil immersed three phase 10 mw substation
Delivery Time
40-50 days after confirm the drawing

High quality oil immersed three phase 10 mw substation

Product Description



Dealim brand 220kv,110kv and 66kv low-loss series transformer is our independently developed new generation of transformers on the basis of absorption of China and foreign advanced technology, which features low local discharge,low loss, high reliability, strong protection against abrupt short circuit.



Main Functions and Features



  • Amount of local discharge: The apparent discharge amount under 1.5 times of rated voltage is less than 80pC;
  • Noise:Product of 63MVA and below is lower than 58dB(AN);
  • Power loss: No-load loss is 30% lower than that of IEC standard;
  • Reliability: All in service products have no damages or oil leakage occurred;
  • Short circuit withstanding: Model SFZ11-50000/132 smoothly passed the short circuit withstanding test of the national transformer quality supervision and inspection center and also passed Holland "KEMA” quality control system.



Technical Data Sheet



Main Technical Parameters for 66KV level S(F)Z9,S(F)Z10,S(F)Z11 Series three-phase on-load oil-immeresd power transformer
Rated
Power
(kva)
High
Voltage
(kv)
H.V.Tap
range
Low
Voltage
(kv)
Connection
symbol
Short
Circuit
Impendence
(%)
No-load loss(KW) On-load loss(KW)No load
current
(%)
S9S10S11S9S10S11
630063
66
69
±8x1.25%6.3
6.6
10.5
11
YNd11910.59.48.253634340.63
800012.511.29.8342.840.440.40.63
1000014.713.111.650.447.647.60.75
1250017.215.413.659.956.556.50.53
1600020.618.516.373.5369.569.50.49
2000024.321.819.289.184.284.20.49
2500028.625.622.6105.399.599.50.42
3150033.930.426.8126.91201200.42
4000040.436.231.9148.5140.3140.30.39
5000047.842.638.6184.5174.3174.30.39
6300056.350.444.4222.32102100.39



Application

Products Applications Show:









Quality Control



Packaging & Shipping

International Packing Method according to client's requirement.



Company Information

Beijing Daelim Green EP Tech Co., Ltd. is mainly engaged in the import & export of electric products and equipment. Our business team has more than 15 years' foreign business experience, and also has a unique understanding of electrical products and overseas markets. We have established and extended business relationships with customers and partners in Southeast Asia, the Middle East, Europe, Africa, North America and South America.


The main products and equipment we are dealing with: power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.


We provide competitive prices, high quality products, timely shipment and efficient services to develop our cooperation with all of our customers. We are trading in accordance with international traditions and practices. We would like to extend business with our customers and partners on the basis of cooperation and mutual benefit..

The electric division of Beijing Daelim a professional team concentrating on electrical products.



  • Cooperation with the first-class manufacturers in China, the best experts and technicians are invited as our technical consultants and personnel.
  • A best communication service. Well-trained employees help you solve your technical problems and maintain composure and patience in face of difficult customer situations.
  • Integration ability. With a wide range of products, we can offer you a tailor-made solution for your special situation as a complete set of electric equipment. You can solely depend on us in any projects, which save you costs for finding another supplier.
  • Price advantages.
  • Multilanguage support. We are a international team, and we can offer you service in English, Chinese, Spanish, Russian, Japanese, German.
  • After-sales service. We can offer you installment service. And we keep track of performance of our products and maintain a successful relationship with our customers. Any other service can be neogotiated.
Certifications



Transaction Records

Till now, our equipments have been sold to decades of countries among Asia, Africa, Europe, North America, Latin America and South America.You can see our transaction records in the picture below.
