live tank sf6 gas 330kv circuit breaker for substation

FOB Reference Price:Get Latest Price
US $150,000-170,000 / Pieces | 1 Piece/Pieces live tank sf6 gas 330kv circuit breaker for substation (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Model Number:
LW15-363
Type:
High Voltage
Poles Number:
3
Product name:
live tank sf6 gas 330kv circuit breaker for substation
Rated voltage:
363kV
Rated frequency:
50/60Hz
Certificate:
CE CB ISO9001
Rated current:
3150;4000A
rated pressure of SF6 gas:
0.5
Color:
Black&white
Standard:
IEC62271
Brand:
Daelim
Mechanical Life:
30000 Times
SupplyAbility
SupplyAbility:
Piece/Pieces per Month live tank sf6 gas 330kv circuit breaker for substation
Packaging & Delivery
Packaging Details
Woden case;One suit, one case live tank sf6 gas 330kv circuit breaker for substation
Port
Tianjin/Shanghai/Shenzhen etc
Lead Time :
Shipped in 30 days after payment
Product Description

live tank sf6 gas 330kv circuit breaker for substation

1.Brief Introduction

H.V. A.C.porcelain type SF6 gas circuit breakers, with voltage from 40.5-550kV and rated current up to 4000A, manufactured by our company, are provided with three kinds of operating mechanism, pneumatic, spring and hydraulic type.

Motor is used in spring mechanism to charge closing spring and charge opening spring at closing. Disk spring is used
in hydraulic mechanism to be charged in stead of traditional compressed nitrogen gas for charge, and hydraulic driving
is used at both opening and closing. Compressed air is used in pneumatic mechanism as driven force for open
while spring is used for close. The three kinds of operating mechanisms have their own features and are used in circuit
breakers of different voltage class respectively.Due to the unit structure in circuit breaker, there are advantages of minimized number of breaks,lower number of parts, simple structure,high reliability and long period of inspection.

2.Normal Service Condition

2.1.Altitude:≤3000m

2.2.Humidity monthly:≤90%
2.3.Max .wind velocity:≤35m/s
2.4.Pollution class:Ⅲclass,IV class
2.5.Ambient air temperature:-35℃~40℃(It’s satisfied under condition of -40℃ in heavy cold area)
2.6.Max .temperature difference daily: 25K
2.7.Earthquake withstand density:8 degree
2.8.Ice coating: ≤10mm
2.9.Max. radiance from sun: 1000 W/m2
Note: When product is used under the condition out of above range, user and manufacturer shall consult to confirm.

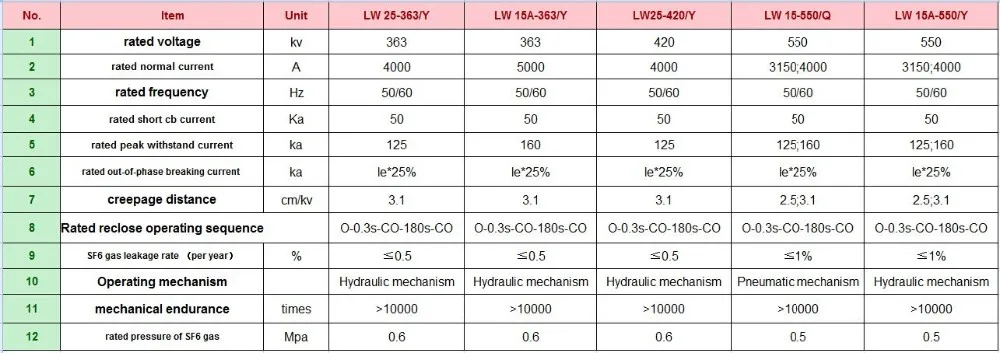

3.Specification

4.Main Features and Advantages:


4.1 Superior interrupting capability

Unit structure is applied in this series products body with variable clearance. It can meet all switching requirements.
Either severe rate of rise of the recovery voltage by a short-line fault or high recovery voltage
peak by out-of -phase interruption are withstood by the efficiently designed interrupter.
In switching of magnetizing current, the overvoltage is less than twice operating voltage. No restrike or reignition
occur during switching of charging current.

4.2 Reliable insulation and current-carrying capability
Because of the isolation of SF6 gas from the atmosphere,the breaker has a reliable insulating capability.
SF6 gas does not deteriorate with age and at the same time it protects the insulators within the gas.It also
protects the contacts from oxidization and other chemical reaction as SF6 gas is stable and inert when it is
used together with most of other materials.

4.3 High reliability
The series products passed all type tests at National High Voltage Apparatus Quality Monitor and Inspection
Center. Mechanical endurance:3000 times without regulation and 10000 times with lubrication and
regulation permitted have been passed. It also passed electrical endurance test, breaking 20 times at rated
short-circuit breaking current (40kA/50kA/63kA) during type test.

4.4 Operating Mechanism
Spring operating mechanism and pneumatic operating mechanism, provided with circuit breaker, are professionally
manufactured by Sino-Japanese joint venture XD-Mitsubishi Co. with excellent performances.
Hydraulic operating mechanism, provided with circuit breaker.

4.5 Minimized maintenance work
The breaker is constructed by units, resulting reduced number of breaks and parts, and minimized inspection
and maintenance work. Due to operating mechanism with advaned technology, excellent performance,
it hardly need repair.

4.6 Excellent earthquake withstand capability
The porcelain type SF6 gas circuit breaker is substantially resistant to seismic shock and the safety is increased
due to simple construction and light weight.

The Excellences


1. Excellent Manufacturing

1.1The Workshop and Equipment

The workshop is clean, wide and professional. There are quantities sets of world-advanced special manufacturing and testing equipments. including automatic silicon steel sheet longitudinal-transverse cutting line, automatic electromagnetic wire continuous extrusion unit and alrge kerosene vapor phase drying system.


1.2 The Technical Engineers

The company has invited experts an dengineering technicians from large and midium-sized transformer factories as its managerial an dtechnical personnel. All production and manufacture procedures are under strict control.


2. Excellent Quality


2.1 The Advanced Technology


With Sillcon Gra Phics Indk work station and a complete set of specialized design soft ware introduced from USA, all design procedures of the product like temperature rise, field-strength computation are made by computers.

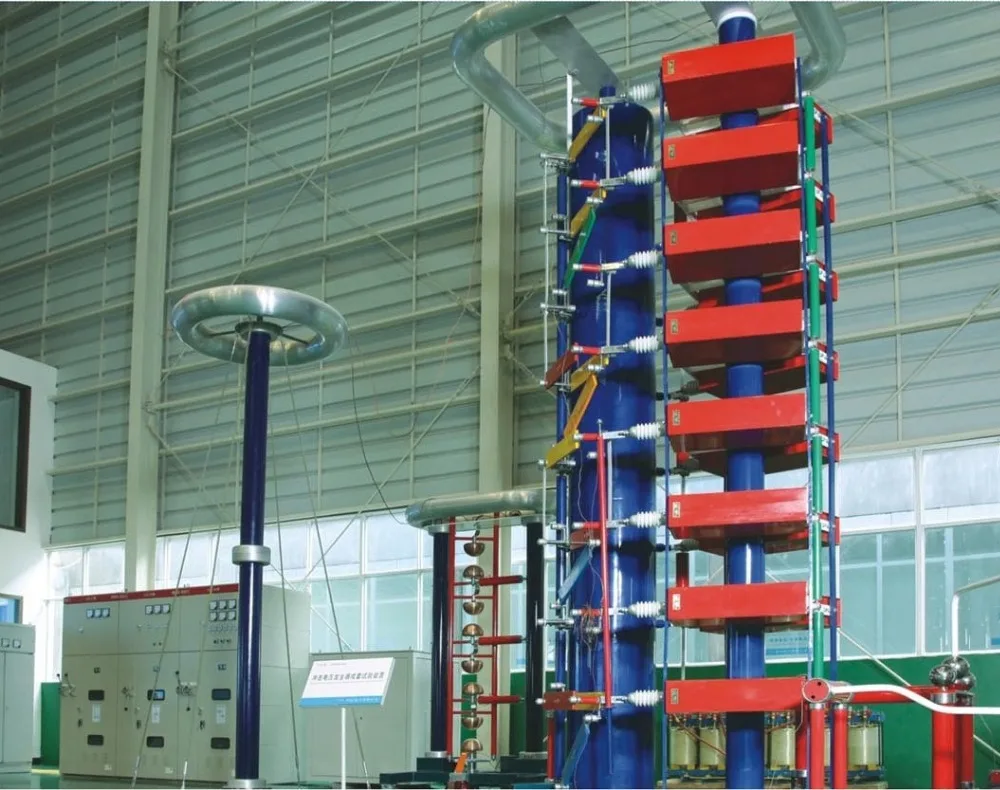

---- 1200kv lightening pulse generator



2.2 The Automatic Monitering System

The company is always persuiting for the principle of "development by technology and creating famous brand by quality".


Circuit Breaker  microcomputer automatic test monitering systems.                                                                                         -----



2.3 The Certificates

The company conducts all-course management in acccordance to ISO9001 quality system and have obtained registration certificates .


3. Excellent Management



3.1 The 6s Management

The company has been applied the "6s management system"(  to daily operation and it has make a great contribution to our development .





---The "6S" is SEIRI, SEISO, SEIKEISO, SEITON, SHITSUKE  and SECURITY.


3.2 The Employee Team

We are promoting our enterprise to be a team of standardization and modernization as well as scientific management.

Now we have a team of high cohesion and loyalty. Each of them is played out enthusiasm and creativity, which providing a continuous motivation for enterprise's development.


4. Excellent Services



4.1 Customer Supreme

We firmly believe that good service is the extention of the products. We always treat our clients with passion and patience. "Quality first, customer supreme“ is our principle that we will follow on forever.



4.2 We provide you free fee for technical consultation and instruction.

4.3 We give you 24-hour quick response.

4.4 We can arrange experienced technicians to help you install the equipments and train your staff on site.

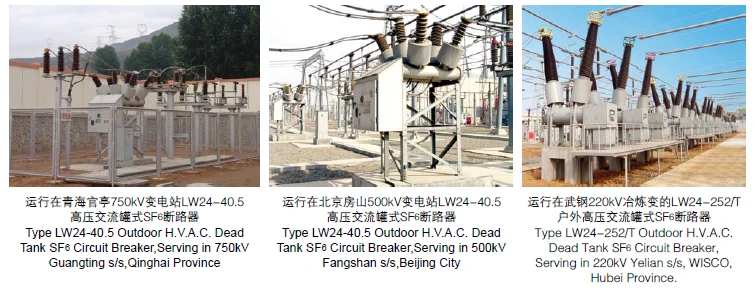

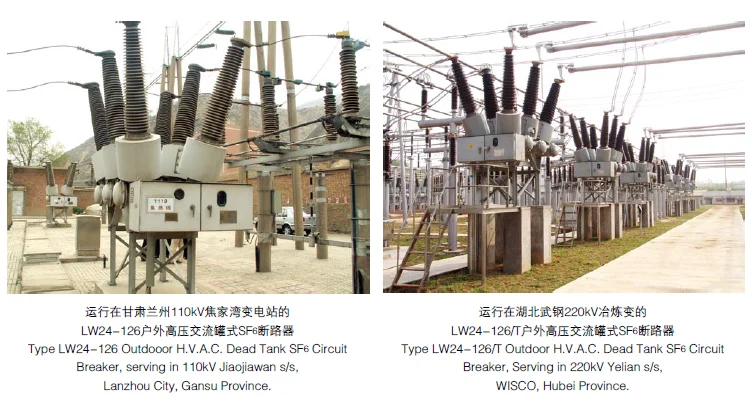

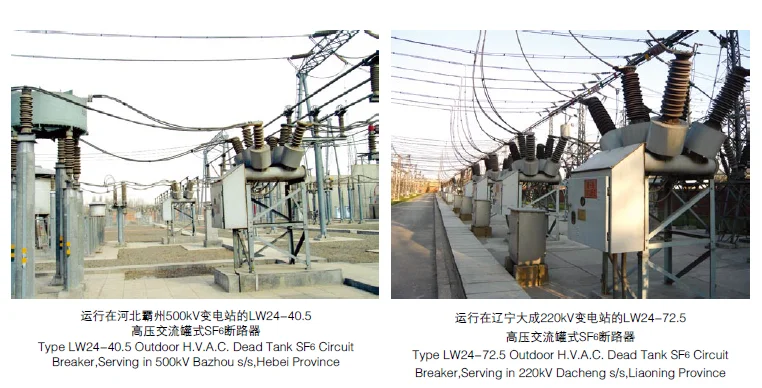

Previous Cases

We have been worked in electric industry for nearly 20 years.Our products are sold to South America, North America, South-east Asia and Africa, and we have won lots of cooperations and recognitions for our best price and top quality! Meanwhile we have built a long cooperative relationship with the clients from all over the world!

Our Company

Beijing Daelim Green EP Tech Co., Ltd. LOCATED IN: Beijing of China

SPECIALIZED IN: Electrical equipment
PRODUCTION MAINLY: Power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.
PRODUCTS ARE SOLD TO: Southeast Asia, the Middle East, Europe, Africa, North America and South America.
More information please search for http://bjdaelim.en.alibaba.com

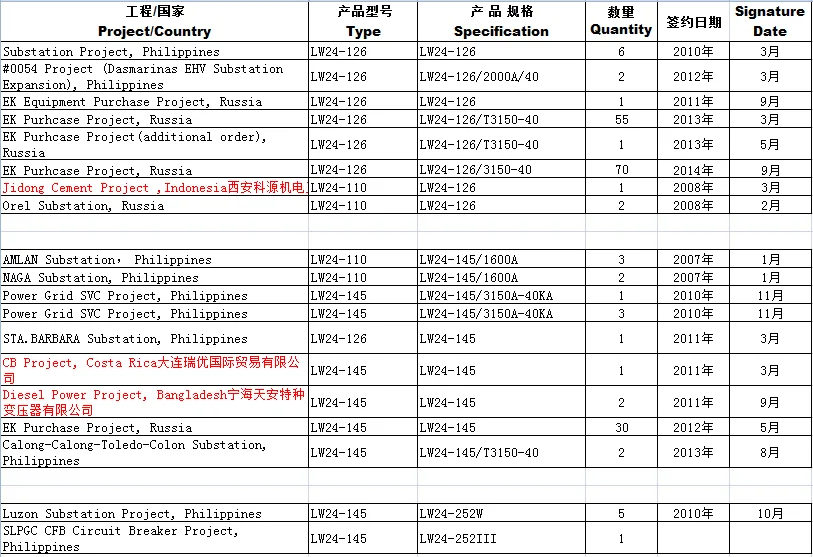

Sales Records
Packing & Delivery

The circuit breakers are prepared and waiting for packaging.

One suit, one case. The circuit breaker is packed in a hard wooden case.

The circuit breaker on the truck is to the way of delivery port.

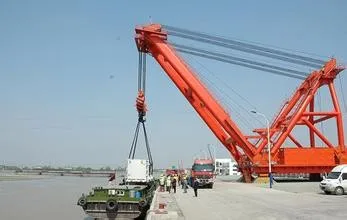

The circuit breaker is transfered onto a ship.

The circuit breaker is on a cargo to your country.

Raiway transportation.( You can choose the transportation way you want.)

Q&A



Q: How long is your delivery time?

A: Generally it is 60 days if the goods are in stock. or it is 80 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.

Q:Why choice  Daelim?

A:After compare quality,delivery and price you will find out answer
