Outdoor High Voltage Disconnector Switch 24KV 630A with Fuse
- Place of Origin:
-
Beijing, China (Mainland)
- Brand Name:
-
Daelim
- Model Number:
-
GW9
- Max. Current:
-
630A
- Max. Voltage:
-
24KV
- Product name:
-
Outdoor High Voltage Disconnector Switch 24KV 630A with Fuse
- Rated current:
-
630a
- Rated voltage:
-
24kv
- Frequency:
-
60Hz
- Certificate:
-
ISO9001
- Standard:
-
IEC 62271-102
- Type:
-
Disconnect Switch
- Material:
-
Copper
- Function:
-
Transmission Line
- Phase:
-
single
- Supply Ability:
- 500 Set/Sets per Month outdoor high voltage disconnector
- Packaging Details
- By cleint request
- Port
- Tianjin
- Lead Time :
- 24 days after confirm the drawing

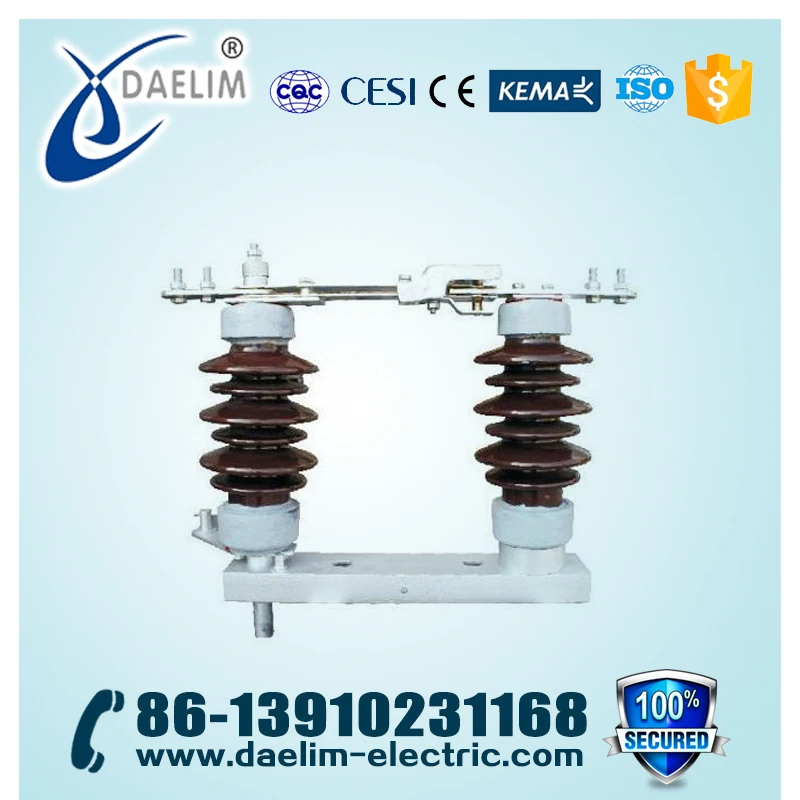

Outdoor High Voltage Disconnector Switch 24KV 630A with Fuse
Introduction

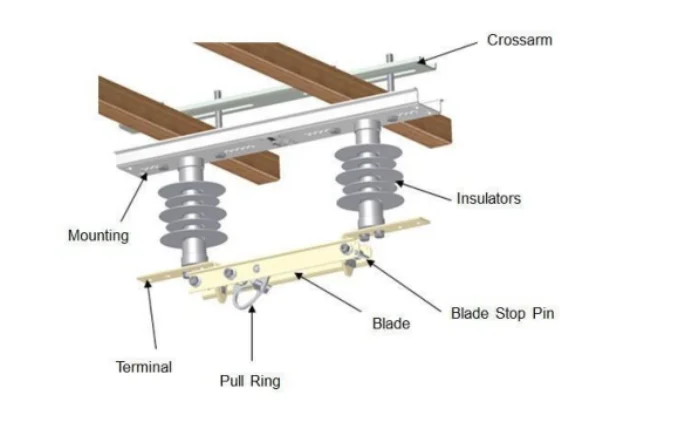

12KV and 24KV overhead disconnect switch is a hookstick-operated switch used to sectionalize or isolate circuit on electrical distribution systems.It will usually work together with load-break switches or circuit breaker to provide visible distance,and meanwhile improve the operation and maintenance safety.
12kV/24kV Outdoor Single Phase Disconnect Switch | ||||
Rated Voltage (KV) | 12/24 | |||
Rated Current(A) | 400 | 630 | 1000 | 1250 |
Withstand Current(KA/S) | 25/3 | 25/3 | 25/3 | 25/3 |
Peak withstand current (KA) | 63 | 63 | 63 | 63 |
Withstand voltage (kv) | 55 | 55 | 55 | 55 |
Withstand voltage (CROSS) | 65 | 65 | 65 | 65 |
BIL(kv) | 120 | 120 | 120 | 120 |
BIL(cross)(kv) | 120 | 120 | 120 | 120 |
Creepage (silicon)(mm) | 533 | 533 | -- | 533 |
Creepage (Porcelain)(mm) | 398 | 398 | -- | -- |
Creepage (Exopy)(mm) | 442 | 442 | 442 | -- |
Mechanical Life (times) | >2000(M1) | >2000(M1) | >2000(M1) | >2000(M1) |

1. We offer the best solution and products to fulfill the buyers' requirments.
2. We can arrange technicians to install the equipments and train your staff on site.
3. Anytime, we provide considerate technical consultation.
4. Prompt reply for your inquiry and feedback.

Our mode of transport, we are your best business partner.
Q:How long have you been worked in electric industry?
A:We have been worked in electric industry for nearly 20 years.
Q: How long is your delivery time?
A: Generally it is 20 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Q: Which market do you already sell?
A: We already ship to Europ, Middle East, South America, Asia, Afria etc.
Q: What is the standard of package?
A: Export standard package or special package according to customer requirement
Q:Why choice Daelim?
A:After compare quality,delivery and price you will find out answer.
Beijing Daelim Green EP Tech Co., Ltd. is mainly engaged in the import & export of electric products and equipment. Our business team has more than 15 years' foreign business experience, and also has a unique understanding of electrical products and overseas markets. We have established and extended business relationships with customers and partners in Southeast Asia, the Middle East, Europe, Africa, North America and South America.
The main products and equipment we are dealing with: power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.
We provide competitive prices, high quality products, timely shipment and efficient services to develop our cooperation with all of our customers. We are trading in accordance with international traditions and practices. We would like to extend business with our customers and partners on the basis of cooperation and mutual benefit..
