Quick Details

  • Place of Origin: Beijing, China (Mainland)
  • Brand Name: DAELIM
  • Model Number: LW24
  • Type: High Voltage
  • Poles Number: 3
  • Rated current: 5000A
  • Rated voltage: 800kV
  • Breaking Capacity: 50~80KA
  • Frequency: 50/60Hz
  • Mechanical Life: 10000 Times
  • Opening Time: ≤ 30ms
  • Closing Time: ≤ 100ms
  • Mechanism: Hydraulic
  • Certificate: ISO9001
  • Standard: IEC60898-1

Packaging & Delivery

Packaging Details standard international package, proper for any special customer sea
or air requirements one set one case
Delivery Time within 60 days after received payment

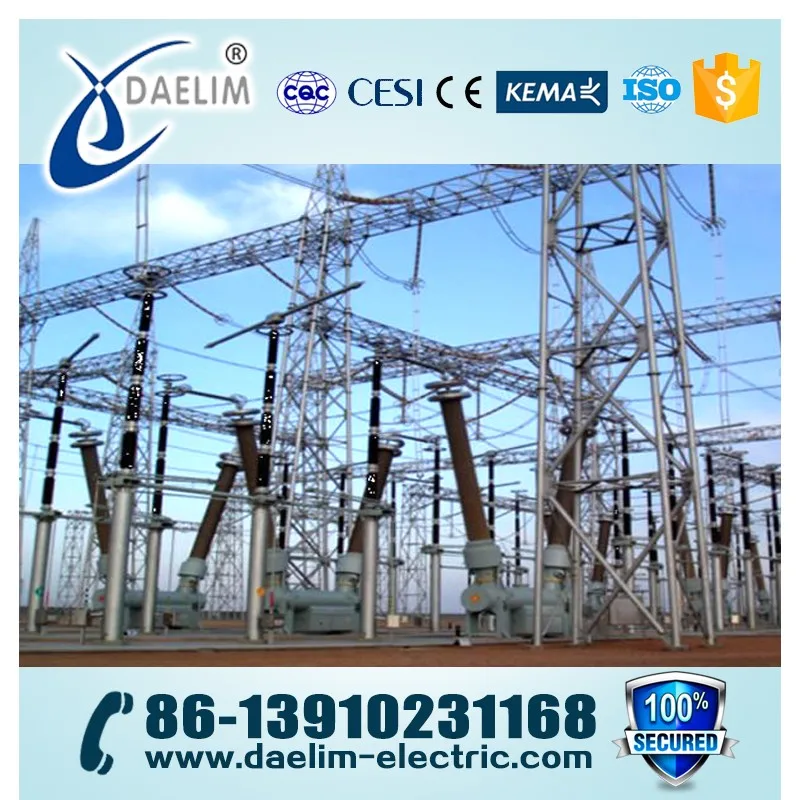

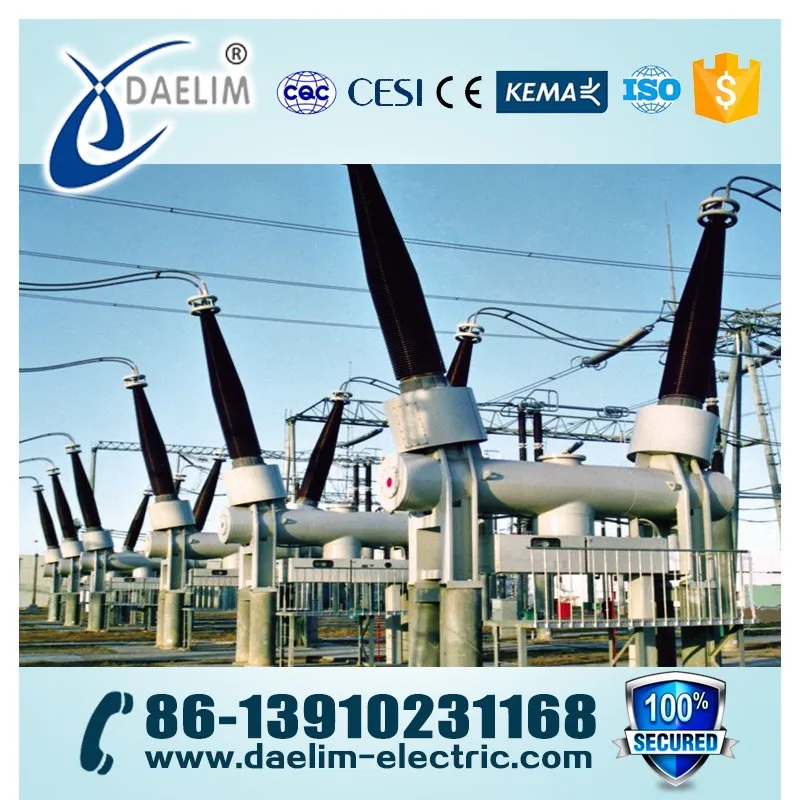

 800kv SF6 High Voltage Circuit Breaker


      LW24- Sf6 gas circuit breakers are new type products, which developed by our company. Compared with foreign similar products, the product can meet the needs of the electric power market. Our company can meet with different needs of users, not only design the layout form of flexible and varied, but also the whole substation (including interval bearing busbar, tower, etc.) and the secondary equipment of general contracting. LW24 open combination electric appliance, advanced structure, good performance, technical parameters can completely satisfy the requirements of GB and IEC standards. The product has both closed-end structure tight combination Gather together, cover an area of an area small features, and has the advantages of open electric price is cheap, convenient maintenance, compared to the conventional power station to reduce its covers an area of about 60%, especially for city network , substation mountainous area , industrial and mining enterprises to choose.




TECHNICAL SPECIFICATIONS






ITEMUNITLW24-800
RATED VOLTAGEKV800
RATED CURRENTA5000
RATED FREQUENCYHZ50/60
RATED SHORT CB CURRENT

KA

50
RATED SHORT TIME WITHSTAND CURRENT AND DURATIONKA50(3S)
RATED PEAK WITHSTAND CURRENTKA135
RATED MAKING CURRENT(PEAK)KA135
RATED SHORT TIME POWER FREQUENCY WITHSTAND VOLTAGE
BETWEEN BREAKSKV960+460
TO EARTHKV960
RATED LIGHTNING IMPULSE WITHSTAND VOLTAGE
BETWEEN BREAKSKV900+400
TO EARTHKV900
CREEPAGE DISTANCEMM/KV25
BREAKING TIMEMS≤40
OPENING TIMEMS≤20
CLOSING TIMEMS100
MECHNICAL ENDURANCETIMES10000
RATED OPERATING SEQUENCE

O-0.3S-CO-180S-CO or

CO-15S-CO

O-0.3S-CO-180S-CO or

CO-15S-CO

RATED PRESSURE OF SF6 GAS(at 20°C)MPA0.50,0.40
ALARM/LOCK PRESSURE OF SF6 GASMPA0.45/0.40
RATED VOLTAGE OF CONTROL CIRCUITVDC220/110
RATED VOLTAGE OF ENERGY-STORE MOTOR CIRCUITV

DC220/110

;AC220

BREAKING NUMBER OF RATED-SHORT-CIRCUIT BREAKING CURRENTTIMES20



OUTLINE DRAWING





Certifications

Transaction Records

Till now, our equipments have been sold to decades of countries among Asia, Africa, Europe, North America, Latin America and South America. Our clients has praised our high quality and good service, what's more they also sent us so many Operation Certificates, which are operating perfectly in their country now. You can see our transaction records in the picture below.
