ZW32-12 Type Outdoor 13.8KV Vacuum Circuit Breaker

FOB Reference Price:Get Latest Price
US $2,200-2,800 / Piece | 1 Piece/Pieces ZW32-12 Type Outdoor 13.8KV Vacuum Circuit Breaker (Min. Order)
Supply Ability:
200 Piece/Pieces per Month ZW32-12 Type Outdoor 13.8KV Vacuum Circuit Breaker
Report Suspicious Activity
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Model Number:
High Voltage
Poles Number:
Rated voltage:
Rated frequency:
mechanical endurance:
Rated current:
Breaking capacity:
ZW32-12 Medium Voltage Outdoor Vacuum Circuit Breaker (VCB)
Opening speed:
Closing speed:
Packaging & Delivery
Packaging Details
One suit, one case ZW32-12 Type Outdoor 13.8KV Vacuum Circuit Breaker
Delivery Time
Shipped in 20 days after payment
Product Description

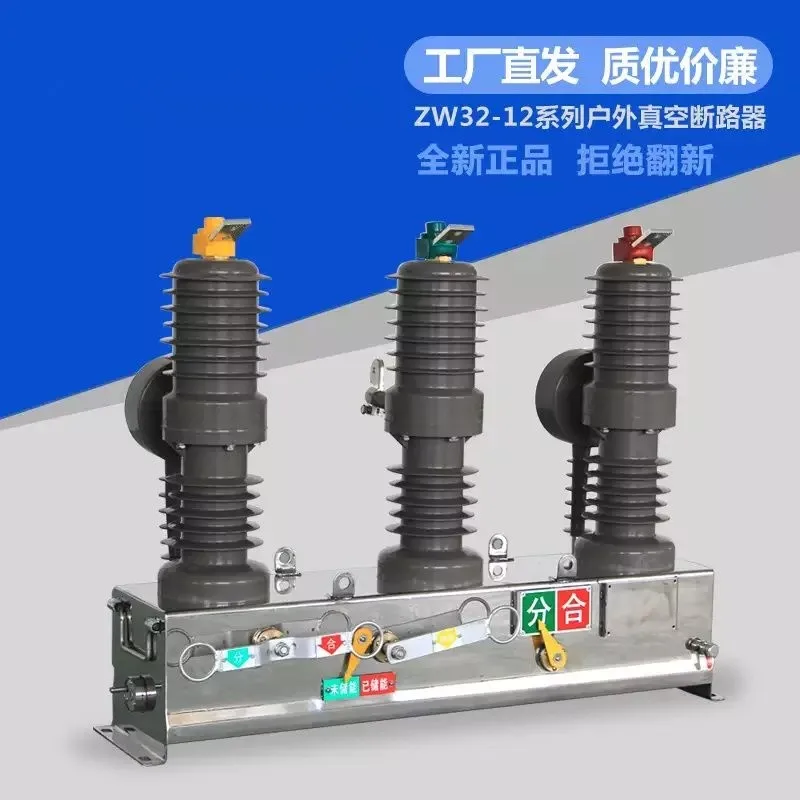

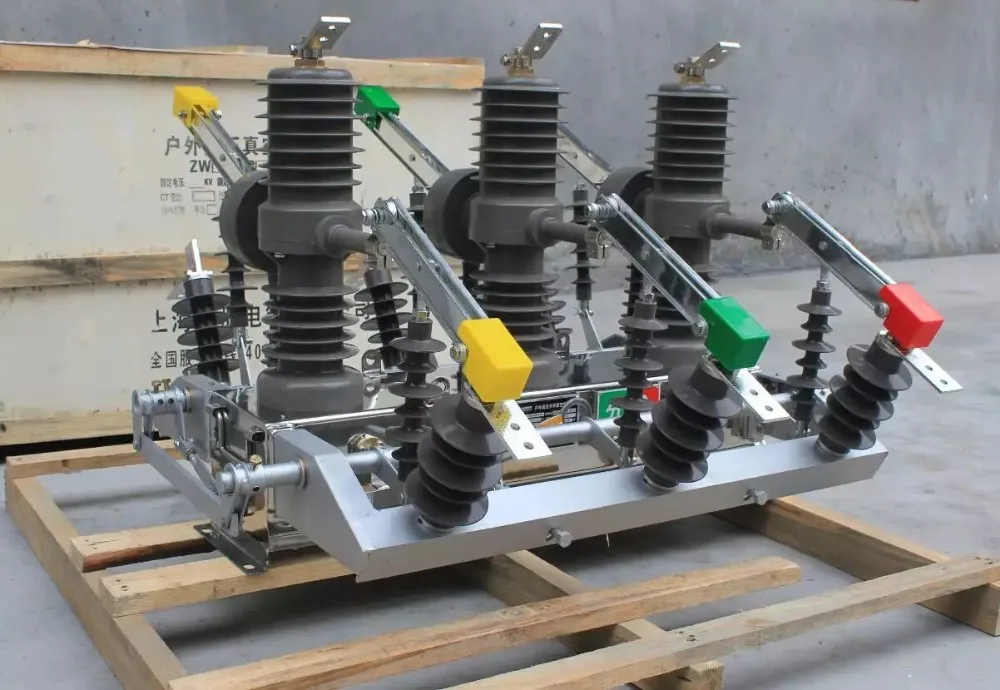

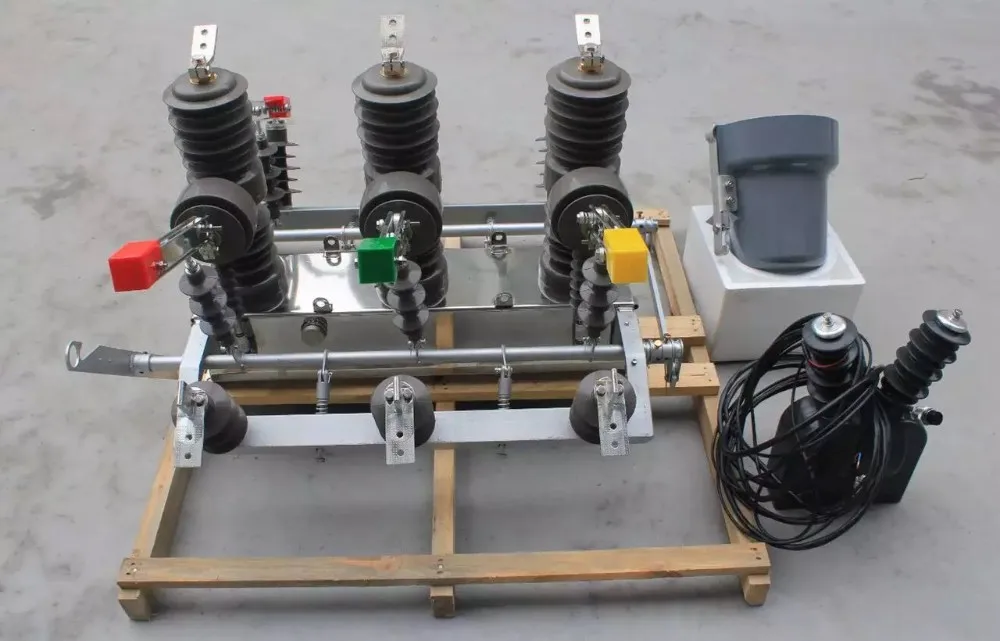

ZW32-12 Type Outdoor 13.8KV Vacuum Circuit Breaker


ZW32-12 type outdoor high-voltage permanent magnetic vacuum circuit breaker (hereinafter referred to as the breaker) is applied to three-phase AC 50Hz, rated voltage is 7.2 ~ 12kV of outdoor high voltage switch equipment.Circuit breaker in accord with the national standard GB1984 "high voltage AC circuit breaker" and "professional standards JB3855 3.6 ~ 40.5kV outdoor AC high-voltage vacuum circuit breaker" and the related IEC standards.For industrial and mining enterprises, power plant and substation for electric equipment control and protection, and is applicable to the place of frequent operation.A circuit breaker having repeatedly interrupting and fast reclosing ability.

2.Normal Service Condition


2.2.Humidity monthly:≤90%
2.3.Wind pressure:≤700Pa
2.4. Seismic level: ≤8 degree
2.5.Ambient air temperature:-40℃~40℃(It’s satisfied under condition of -40℃ in heavy cold area)
Note: When product is used under the condition out of above range, user and manufacturer shall consult to confirm.


4.Main Features and Advantages:

> Equipped with vacuum arcing chamber of the column in vacuum circuit breaker (performance is stable and reliable, and has no combustion and explosion danger, safety, free of maintenance, small volume, light weight and long service life etc;

> Circuit breaker using fully closed structure, sealed performance is good, help to improve the moistureproof, prevent condensation performance;

> Circuit breaker can be installed two phase or three-phase CT, output two phase or three obtained three intelligent controller for protection or information analysis;

> The conjunction of circuit breaker, break-brake manual or electric operated, also remote operation.

> Operators in the switch cabinet sealed inside, can avoid effectively switch from long outdoors environment and cause institutions rust.

> Operator novel, simple, reliable operation, small volume, mechanical life can reach 10000 times.

The Excellences

1. Excellent Manufacturing

1.1The Workshop and Equipment

The workshop is clean, wide and professional. There are quantities sets of world-advanced special manufacturing and testing equipments. including automatic silicon steel sheet longitudinal-transverse cutting line, automatic electromagnetic wire continuous extrusion unit and alrge kerosene vapor phase drying system.

1.2 The Technical Engineers

The company has invited experts an dengineering technicians from large and midium-sized transformer factories as its managerial an dtechnical personnel. All production and manufacture procedures are under strict control.

2. Excellent Quality

2.1 The Advanced Technology

With Sillcon Gra Phics Indk work station and a complete set of specialized design soft ware introduced from USA, all design procedures of the product like temperature rise, field-strength computation are made by computers.

---- 1200kv lightening pulse generator

2.2 The Automatic Monitering System

The company is always persuiting for the principle of "development by technology and creating famous brand by quality".

Circuit Breaker  microcomputer automatic test monitering systems.                                                                                         -----

2.3 The Certificates

The company conducts all-course management in acccordance to ISO9001 quality system and have obtained registration certificates .

3. Excellent Services

3.1 Customer Supreme

We firmly believe that good service is the extention of the products. We always treat our clients with passion and patience. "Quality first, customer supreme“ is our principle that we will follow on forever.

3.2 We provide you free fee for technical consultation and instruction.

3.3 We give you 24-hour quick response.

3.4 We can arrange experienced technicians to help you install the equipments and train your staff on site.

Previous Cases

We have been worked in electric industry for nearly 20 years.Our products are sold to South America, North America, South-east Asia and Africa, and we have won lots of cooperations and recognitions for our best price and top quality! Meanwhile we have built a long cooperative relationship with the clients from all over the world!

Our Company

Beijing Daelim Green EP Tech Co., Ltd.

LOCATED IN: Beijing of China
SPECIALIZED IN: Electrical equipment
PRODUCTION MAINLY: Power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.
PRODUCTS ARE SOLD TO: Southeast Asia, the Middle East, Europe, Africa, North America and South America.

More information please search for

Sales Records
Packing & Delivery

The circuit breakers are prepared and waiting for packaging.

One suit, one case. The circuit breaker is packed in a hard wooden case.

The circuit breaker on the truck is to the way of delivery port.

The circuit breaker is transfered onto a ship.

The circuit breaker is on a cargo to your country.

Raiway transportation.( You can choose the transportation way you want.)


Q: How long is your delivery time?
A: Generally it is 60 days if the goods are in stock. or it is 80 days if the goods are not in stock, it is according to quantity.

Q: Which market do you already sell?

A: We already ship to Europ, Middle East, South America, Asia, Afria etc.

Q: What is the standard of package?
A: Export standard package or special package according to customer requirement

Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.

Q:Why choice  Daelim?
A:After compare quality,delivery and price you will find out answer
