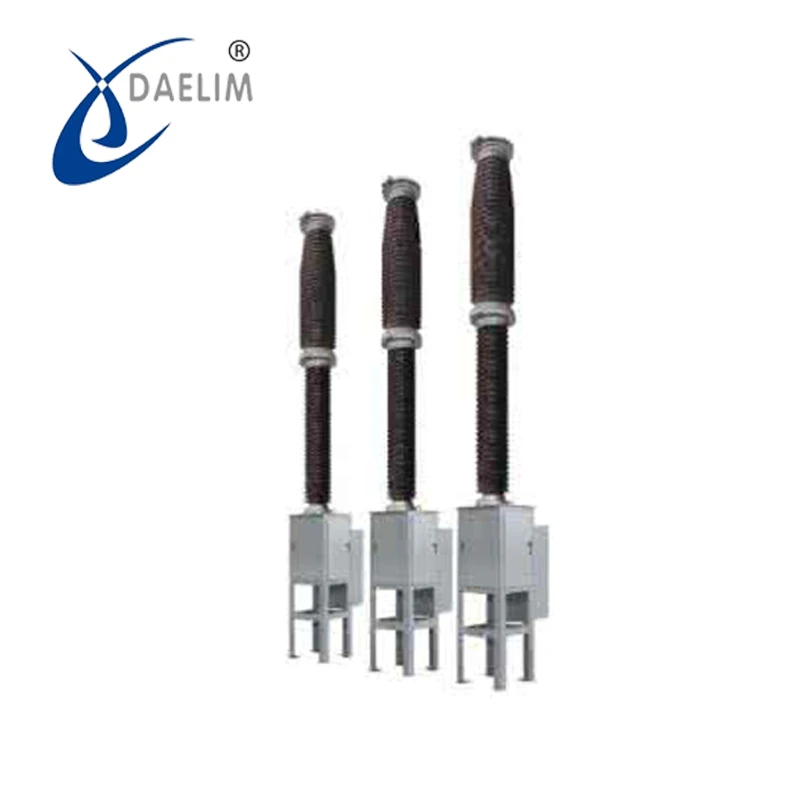

LW36A-145 132kV 145kV High voltage three phase pole mounted Outdoor SF6 Circuit breaker

FOB Reference Price:Get Latest Price
US $29,500-35,900 / Set | 1 Set/Sets LW36A-145 132kV 145kV High voltage three phase pole mounted Outd (Min. Order)
Supply Ability:
100 Set/Sets per Month LW36A-145 132kV 145kV High voltage three phase pole mounted Outd
Port:
tianjin/Shanghai/Guanzhou
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
daelim
Model Number:
LW38-126
Type:
High Voltage
Poles Number:
3
key words:
132kV 145kV High voltage pole mounted Outdoor SF6 Circuit breaker
rated voltage:
126kv
rated current:
3150A
rated frequency:
50hz
phase:
3
standard:
IEC
Breaking Capacity:
40KA
Rated frequency:
50/60
Mechanical Life:
10000 Times
Material:
Metal
Packaging & Delivery
Packaging Details
one set one wooden case,
LW36A-145 132kV 145kV High voltage three phase pole mounted Outdoor SF6 Circuit breaker
Delivery Time
within 45 days after received payment

LW36A-145 132kV 145kV High voltage three phase Outdoor SF6 Circuit breaker


summary
    high voltage vacuum circuit breaker
LW38-126 open combinations are new type products which developed by our company. Compared with foreign similar products, the product can meet the needs of domestic electric power market. Our company can according to the different needs of users, not only design the layout form of flexible and varied, and can be Practice the whole substation a devices (including interval bearing busbar, tower, etc.) and the secondary equipment of general contracting. LW38-126 open combination electric appliance, advanced structure, good performance, technical parameters can completely satisfy the requirements of GB and IEC standards. The product has both closed-end structure tight combination Gather together, cover an area of an area small features, and has the advantages of open electric price is cheap, convenient maintenance, compared to the conventional power station to reduce its covers an area of about 60%, especially for city network and substation mountainous area and industrial and mining enterprises to choose.

The products include indoor and outdoor two arrangement forms and arrangement of each interval can be divided into the circuit breaker and measurement interval. Each interval are composed of fixed part and moving part of two parts. Fixed department Points, including isolation, grounding switch plug and on-site operation control cabinet, etc. Moving part in the base car while different electrical components assembled together can be mobile electronics module as a whole. Circuit breaker interval of movable parts can from type SF6 circuit breaker, current transformers and isolation of plugs, etc. Measurement interval of movable part consists of voltage transformer, lightning arrester and isolation of the plug, etc.

product feature

Circuit breaker for a new generation can type SF6 circuit breaker, the spring operating mechanism. The structure of circuit breaker protection interval and test interval. Cars and earthing switch with electric operating mechanism, including circuit breaker, can be in situ in operation control cabinet for close control operation. From the on-site operation control cabinet to the secondary wiring for each of these components is plug type, you can also provide intelligent control cabinet, to realize unattended. A flexible connection mode, does not affect users continuous electricity maintenance. Overall layout simple and beautiful, can apply to indoor, can also be suitable for outdoor.


technical specifications

no.itemunitdata
1rated voltagekv126
2rated insulation level
1 min power frequency withstand voltage, electrode, ground/fracture)dry42/49
wet34
Lightning shock compression (electrode, on the ground)75
Lightning shock compression (fracture)85
3rated frequencyhz50
4rated currentA3150
5rated short circuit breaking currentKA20
6rated short circuit making current peakKA50
7rated short time withstand currentKA20
8rated short circuit closing current peakKA50
9mechanical lifeTIME6000
10rated short circuit breaking current breaking timesTIME30
11weightkg1400






Manufacture Plant Picture


Certifications



Company Information

Beijing Daelim Green EP Tech Co., Ltd. is mainly engaged in the import & export of electric products and equipment. Our business team has more than 15 years' foreign business experience, and also has a unique understanding of electrical products and overseas markets. We have established and extended business relationships with customers and partners in Southeast Asia, the Middle East, Europe, Africa, North America and South America.


The main products and equipment we are dealing with: power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.


We provide competitive prices, high quality products, timely shipment and efficient services to develop our cooperation with all of our customers. We are trading in accordance with international traditions and practices. We would like to extend business with our customers and partners on the basis of cooperation and mutual benefit..
