Long Rod Suspension And Strain Composite Insulator

FOB Reference Price:Get Latest Price
US $15-150 / Piece | 50 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month
Port:
Tianjin/ Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
daelim
Model Number:
CS70CT
Type:
Insulator
Material:
Composite Polymer
Application:
High Temperature
Rated Voltage:
10-24Kv
Tensile Strength:
10.4MPa
Dry arcing distance:
170-292mm
Thickness:
0.1-100mm
Certification:
RoHS
Size:
Customized
Sample:
free sample supplied
Product name:
Insulation tapes
Length:
custom
Width:
1000mm
Standard:
ANSI,IEC,BS
Density:
1.45
Packaging & Delivery
Packaging Details
international standard package
Delivery Time
Within 45 days after received your payment

  Long Rod Suspension And Strain Composite Insulator

Product Description

 Specifications

1.KEMA
2.WHVRI 5.ISO9001:2000
3.Short delivery time
4.Reliable quality ensurance

Feature of  Rod Suspension  Insulator

 1. High Temperature Subsection Injection and Integral Molding Technology in producing .

2.Good reliability of resisting puncture .

3.Good acid and high temperature resistant ability.

4. End fitting terminations have both inside and outside sealing socket design.

5.  radio reduction of corona rings.

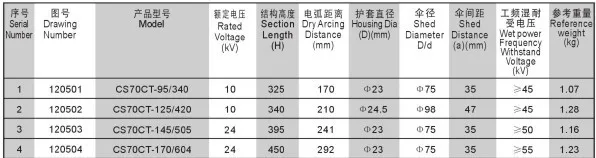

Technical data



Structure of products

  •

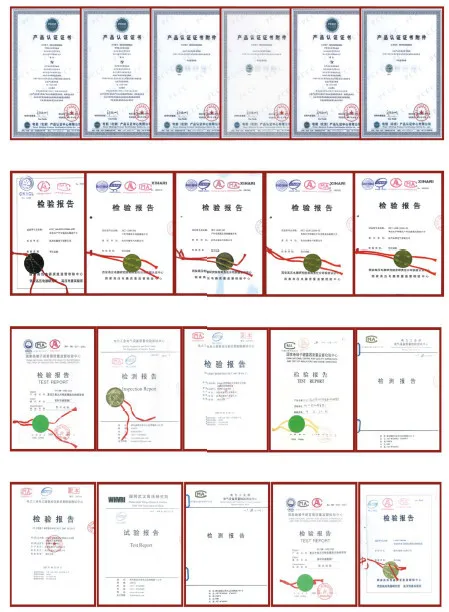

Testing Reports



Our Services



We are the first manufacture who adopts High Temperature Subsection Injection and Integral Molding Technology in producing the suspension insulators. This technology solved the key issue of interface puncture which can affect the reliability of insulators. Rod is made of epoxy resin reinforced fiber glass which has good acid and high temperature resistant ability; End fitting terminations have both inside and outside sealing socket design, using our patent technology,i,e, High temperature one time molding;The connection between end fitting and core rod is achieved by using crimping technology which is widely used presently; Corona rings are used to reduce radio



Packaging & Shipping

Packing And Shipping Shows





Company Information

Beijing Daelim Green EP Tech Co., Ltd. is mainly engaged in the import & export of electric products and equipment. Our business team has more than 15 years' foreign business experience, and also has a unique understanding of electrical products and overseas markets. We have established and extended business relationships with customers and partners in Southeast Asia, the Middle East, Europe, Africa, North America and South America.


The main products and equipment we are dealing with: power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.


We provide competitive prices, high quality products, timely shipment and efficient services to develop our cooperation with all of our customers. We are trading in accordance with international traditions and practices. We would like to extend business with our customers and partners on the basis of cooperation and mutual benefit..
