High efficiency Vertical Micro Francis Hydro Turbine Synchronous Generator

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1000 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Model Number:
HLA253-LJ-100
Type:
Other
type:
Hydro Francis Turbine Generator
SupplyAbility
SupplyAbility:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed in wooden case, complying with export packing standard.
Port
Tianjin
Lead Time :
2-3 months

High efficiency Vertical Micro Francis Hydro Turbine Synchronous Generator



Micro Hydro Turbine Generator



No.

Item

Specification

1

Brand Name

Daelim

2

Turbine Capacity

55KW to 6300KW

3

Color

Blue, green, or negotiable

4

Frequency

50Hz or 60Hz

5

Control Panel

Microcomputer XCR Excitation Panel

6

Generator

Synchronous generator

7

Inlet Valve

 Electric butterfly valve

8

Speed Governor

Microcomputer digital speed governor.

9

Turbine Name

Pelton Turbine

Francis Turbine

Kaplan Turbine

Design Head

50-500 meters

8-339 meters

3-14.6 meters

Runner Diameter

0.4-1.1 meters

0.25-1.4meters

0.4-2.0 meters

Rated Power

55-6300KW

55-5600KW

55-2500KW

Model Number

Water Turbine

Synchronous Generator

HLA551-WJ-100

SFW2000-14/2600

CJ237-W-125/1×11

SFW2000-10/1730

XJA-W-40/1×9

SFW125-8/560





Brief Introduction:

Reaction turbines

Reaction turbines are acted on by water, which changes pressure as it moves through the turbine and gives up its energy. They must be encased to contain the water pressure (or suction), or they must be fully submerged in the water flow.
Newton's third law describes the transfer of energy for reaction turbines.


Most water turbines in use are reaction turbines and are used in low (<30m/98 ft) and medium (30-300m/98–984 ft) head applications. In reaction turbine pressure drop occurs in both fixed and moving blades.



Impulse turbines

Impulse turbines change the velocity of a water jet. The jet pushes on the turbine's curved blades which changes the direction of the flow. The resulting change in momentum (impulse) causes a force on the turbine blades. Since the turbine is spinning, the force acts through a distance (work) and the diverted water flow is left with diminished energy.


Prior to hitting the turbine blades, the water's pressure (potential energy) is converted to kinetic energy by a nozzle and focused on the turbine. No pressure change occurs at the turbine blades, and the turbine doesn't require a housing for operation.
Newton's second law describes the transfer of energy for impulse turbines.
Impulse turbines are often used in very high (>300m/984 ft) head applications .



Note:

Any other sizes are available according to customers' special requests. If you are interested in our products, please send us some key parameters (such as net head, water flow, installed capactiy, unit number, frequency, voltage) in inquiry and contact us.

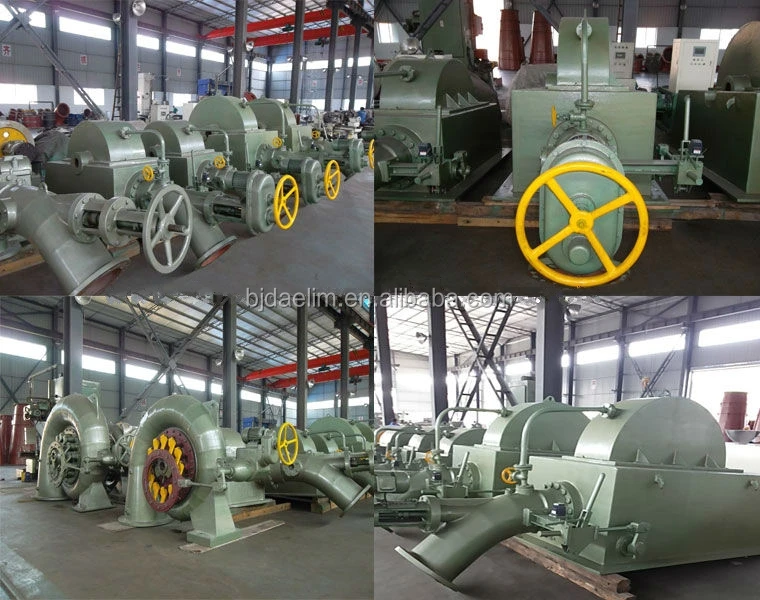

Products Introduction:

Pelton water turbine is the best choice to make use of high head and small flow water resourses.Our pelton turbine runner diameter is 0.4-1.2m,which adapt to the water head of 50-500m,and the capacity is 24-3200KW.Francis Water turbine generator set is used to exploit high head, medium flow water recourses. Our francis water turbine runner diameter is 0.25-1.5m, which adapt to the water head of 10-339m, and the installed capacity is 75-6300KW. The inclined-jet turbinemainly used in high waterhead and low flow rate power station . The inclined-jet’s runner diameter is 0.32~0.8 meter , it can be suitable for water heads 60~150 meter, and its capacity is75~1600 KW. The Kaplan turbine mainly used in medium or high water head and high flow rate water resources . The Kaplan turbine which we produced with its runner diameter 0.4~2.00 meter, can be suitable for water heads 3~14.6 meter , and its capacity is 55~2500 KW.



Superiority of Our Products:

1.We can provide the complete equipment, including: water turbine, generators, inlet valve, governor, computer control panel, and other ancillary equipment.



2.Our production ability and quality of Francis Turbine runner own quite Reputation prominent in China among all the small and medium sized enterprises.
