Hot sale Hydro turbine/Hydraulic Francis Turbine

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Model Number:
HLA551-W-J-71
Type:
Other, Francis Water Turbine
SupplyAbility
SupplyAbility:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed in wooden case, complying with export packing standard.
Port
Tianjin
Lead Time :
2-3 months

Hydro turbine:



Type

Francis Turbine

Water Head

From 5m to 700m

Installed Capacity

From 55Kw to 10000KW

Runner Material

Stainless Steel. Cast

Generator Type

Synchro Generator

Auxiliary Equipment

Govenor, Inlet Valve, Unit Side Panel, Excitation System





Model

Water head(m)

Flow(m³/s)

 Revolving speed (r/min)

Generator model

Governor

Inlet valve

CJ22-W-45/1*4.5

110

0.0709

932

SFW55-6/493

TT-35

Dg250

130

0.0771

1013

SFW75-6/493

160

0.0856

1124

SFW100-6/560

HLD54-WJ-50

77

0.57

1088

SFW320-6/740

T-150A

Dg500

89.7

0.61

1174

SFW400-6/850

104

0.66

1264

SFW500-6/850

XJA-W-63/1*16

100

0.855

635

SFW630-10/1180

YTT-75

Dg500

120

0.937

696

SFW800-8/1180

140

1.012

751

SFW1000-8/1180

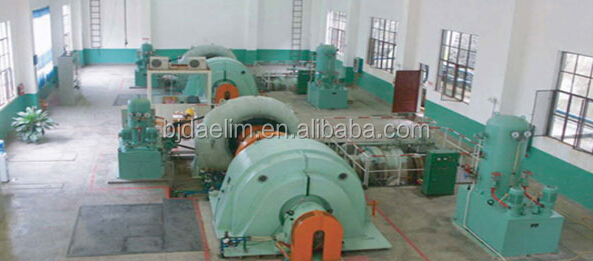

Francis turbine used for large &medium hydraulic power plants with a water head of 30m-200m. Medium & small Francis turbine used for hydraulic power plants with a water head of 20m-150m,driving the rotation of water turbine generator for power generation. Excellent in peak effeciency. Customers' information such as parameters rated head,discharge,frequency,and the rated voltage will help us to choose the model.

Brief Introduction of Our Francis Turbine

The Francis turbines are the most common water turbine in use today around the world. Francis turbine is an inward-flow reaction turbine that combines radial and axial flow concepts. We offer a series of vertical Francis turbines, horizontal Francis turbines and their generating units. Our products operate in a water head from 10 to 650 meters (33 to 2,133 feet) and are primarily used for electrical power production. The turbine powered generator power output generally ranges from 55KW to 10MW. The diameter of penstocks are between 1 and 10 meters (3 and 33 feet)
