Price Of 2200KW silent Diesel Generator For Sale

FOB Reference Price:Get Latest Price
US $500-20,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland), Beijing, China (Mainland)
Brand Name:
Daelim, Daelim
Model Number:
2200GF
Output Type:
AC Three Phase
Speed:
1000/1200 r/min, 1000/1200
Frequency:
50/60Hz, 50/60HZ
Rated Power:
2200KW
Rated Voltage:
400V, 220V
Rated Current:
5500A, 5500A
product name:
kubota diesel generator
Color:
According To Customers' Requirement
Certificate:
ISO9001:2008, CE
Product Name:
generator
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case
Port
TIANJIN
Lead Time :
30 days after deposit



Price Of 2200KW Diesel Generator For Sale



Product Description



All engine rating data based on ISO 3046/1;
Reference conditions: Ambient temperature 25℃, Total Barometric Pressure 100kPa, Relative humidity 30%, Intercooler coolant inlet temperature 25 ℃;
Fuel characteristics: Related density: 0.84±0.005, Lower heat value: 42700kj/kg, Consumption tolerance: +5%;

Power: An overload of 10% is permitted for one hour in every twelve hours of operation.



Main Specification

Generator Model 1500GF2000GF2200GF2500GF3000GF
Rated Electrical Power (kW)15002000220025003000
Engine ModelGN6320ZD14GN8320ZDGN8320ZD2GN8320ZD4DN8320ZD28
Bore x Stroke (mm)320x380
Engine Type 4-Stroke, Inline, Direct Injection,Turbocharged, Intercooled
Engine Capacity (kW)16182206250027953310
Engine Rev. (rpm)60060060060050Hz@750
60Hz@720
Fuel Consumption (L/h)385.2519571648.8778.6



diesel generator02.jpg



Advantages



Meet with: ISO8528, IEC60034, ISO3046;
Marine medium speed engine driven, modular construction HFO burning;
Brushless self excited alternator with AVR;
Low speed with power margin and fuel flexibility;
Low noise, long TBO, low operating cost.



Electrical Performan



Voltage

Voltage no load adjustment range

%

95~105

Voltage fluctuation rate

%

±1

Stable voltage regulating rate

%

±2.5

Transient voltage regulating rate

%

±20~-15

Stabilizing time

s

1

Alternator Excitation method



Brushless AVR

Frequency

Stable frequency (rev.) regulating rate

%

5

Frequency (rev.)  fluctuation rate

%

±0.5

Transient frequency regulating rate

%

±10

Stabilizing time

s

< 5

Frequency regulating method

Auto / Manual



Protection

Over speed

  115% Nr   A, T, S

 Reverse P.

  -9.6% Pn   A, T

LO. P

0.25MPa A, 0.15MPa T,S

Over current

 130% In     A, T

FW T.

80℃ A, 85℃ T,S

Over voltage

120% Vn     A, T

LO. T

90℃ A

Over load

  110% In    A



Product Overviews






Gen-set Dimension (Approx.)

Model

A

B

C

D

Weight

mm

mm

mm

mm

(kg)

1500GF

7525

2540

3211

2200

35000

2000GF

8550

2663

3348

2200

45500

2200GF

8650

2663

3548

2200

47500

2500GF

8900

2663

3548

2200

49000

3000GF

9100

2663

3748

2200

51000





Why us

Project Construction

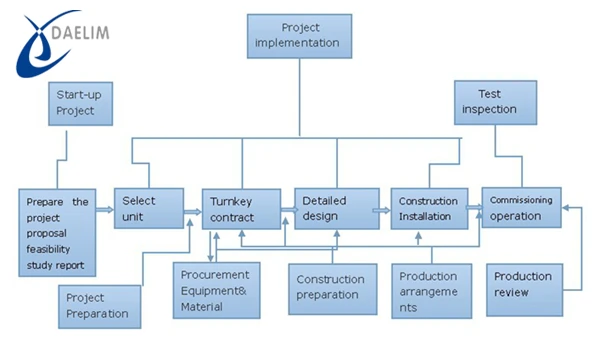

The construction of complete electrical equipment project is generally divided into three stages, i.e. project approval, test run and production inspection, as shown in the below Fig:

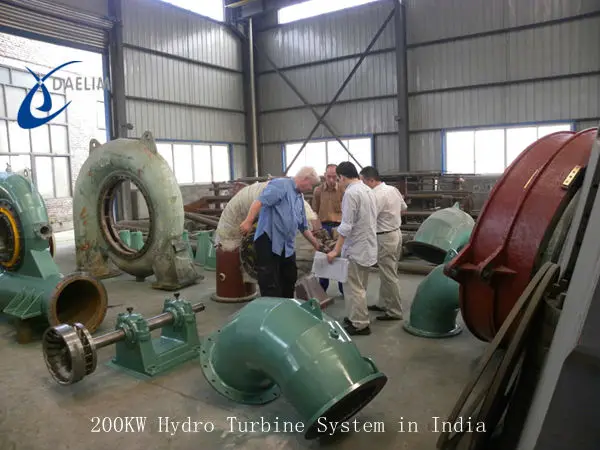

some of cases




Our Services



Your satisfaction is our untiring PURSUIT!

Business Support
Provide distributors and customers with product information support and telephone inquiry services, and provide all customers with product purchasing information and other business support services.


Technical Support
Technical support is available for a complete series of products, including product consulting, type selection & replacement, simple application & installation, and FAQ.


Complaints and Suggestions
We always attaches great importance to the collection of customer complaints and suggestions. We have a professional team for tracking and following up complaints and suggestions flow all the way, and therefore handle each of them properly.



The group is striving toward the goal of globalization of our products!


Company Information

Beijing Daelim Green EP Tech Co., Ltd. is mainly engaged in the import & export of electric products and equipment. Our business team has more than 15 years' foreign business experience, and also has a unique understanding of electrical products and overseas markets. We have established and extended business relationships with customers and partners in Southeast Asia, the Middle East, Europe, Africa, North America and South America.


The main products and equipment we are dealing with: power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.


We provide competitive prices, high quality products, timely shipment and efficient services to develop our cooperation with all of our customers. We are trading in accordance with international traditions and practices. We would like to extend business with our customers and partners on the basis of cooperation and mutual benefit..
