China 450V 25uF compressor air conditioner power Capacitor

FOB Reference Price:Get Latest Price
US $100-500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Daelim
Type:
Polypropylene Film Capacitor
Package Type:
Through Hole
Capacitance:
2~120uF
Operating Temperature:
40/85/21
lead out:
wire or tabs
Class of safety protection:
P1, P2
Dissipation factor of ac run capacitor:
0.002(1KHz)
Endurable voltage:
1.75Un/2.0Un
Application:
Air Conditioner
Rated Voltage:
200VAC~630VAC
Operating frequency:
50/60Hz
Insulation resistance:
>=3000s
Capacitance deviatio:
±5%
Life expectancy:
Class A,Class B(10000h) ,Class.....
Supply Ability
Supply Ability:
25 Set/Sets per Day
Packaging & Delivery
Packaging Details
By clients requests
Port
Tianjin

Packaging & Shipping
Packaging Details:package details:standard international package ,proper for any special customer air or sea requirements ,one set one case
Delivery Detail:according to your quantity and type



Product Description



We have a variety of power capacitors, if this type is not what you want, you can also look into our shop of Alibaba. What's more, we can custom-made according to your requirements. Our website of shop in Alibaba is http://bjdaelim.en.alibaba.com



AC capacitor apply to 50/60Hz A.C. single-phase motor for starting and running, esp.



Nominal capacitance(uF):

3,4,5,7.5,10,12.5,15,17,20,22.5,25,30,35,40,45,50,55,60,70,80,100, 25+5, 30+5, 35+5, 50+5, 60+5, 70+5, 80+5,100,uf,MFD,microfarad.

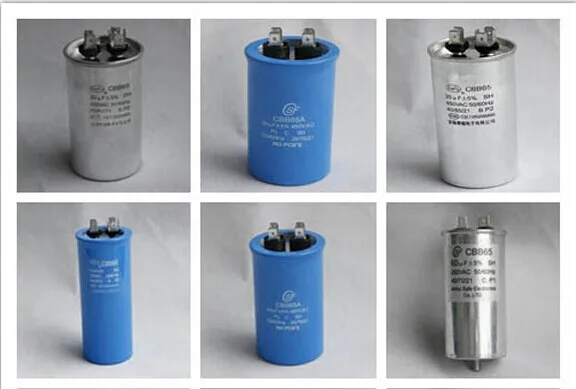

Capacitor CBB66/CBB65/CBB60/CBB61 AC metallized polypropylene film Capacitor



Feature:
The product is equipped inside with reliable explosion-proof equipment and is highly safe. With its good self-healing characteristic and long life-span, it is widely used for air-conditioners, refrigerators, generators, compressor, etc..
Specification:
Working Temperature Range climate types: 40/70/21
Rated Voltage Range :110Vac,250Vac, 300Vac, 370Vac, 440Vac ,450vac,480vac,500vac,550vac,600vac,630vac
Rated Capacitance Range 0.7-120uF
Dissipation Factor Tan ≤ 0.002 (50Hz)
Rated Tolerance of capacitance 5% 10%
Testing Voltage between leading-out ends: 1.75UR 10S no break down
Insulation resistance between leading-out ends: 3000

Dimensional specification (mm):



Please see the details:
